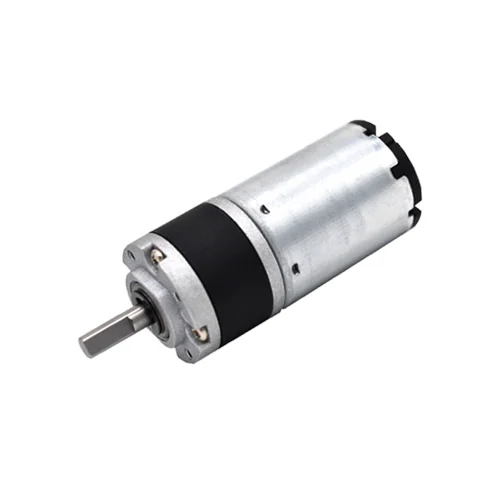

PG22-250 22mm planetary geared motor

|- Model: PG22-250;
|- Gearbox: metal planetary gear reducer;
|- Rated Voltage: DC 1.5V, 3V, 6V, 9V,12V,24V;
|- Rated Torque: Max. 15 Kgf-cm ;
|- Size : Φ22* L TBD ;
|- Shaft : concentric driveshaft, Φ4mm D-cut 0.5mm, custom;
|- Commutation: Carbon brush/Graphite brush;
|- Construction: Permanent Magnet;
|- Encoder: Magnetic encoder;
|- MOQ: 500 pcs;

PG22-250 22mm planetary geared motor


Main features:

|- Model: PG22-250;
|- Gearbox: metal planetary gear reducer;
|- Rated Voltage: DC 1.5V, 3V, 6V, 9V,12V,24V;
|- Rated Torque: Max. 15 Kgf-cm ;
|- Size : Φ22* L TBD ;
|- Shaft : concentric driveshaft, Φ4mm D-cut 0.5mm, custom;
|- Commutation: Carbon brush/Graphite brush;
|- Construction: Permanent Magnet;
|- Encoder: magnetic encoder;
|- MOQ: 500 pcs


PG22-250 mini dc geared motor data examples:

Model No Load Rated Load
Breaking
Torque
Speed Torque Speed
r/min kgf-cm r/min kgf-cm
PG22-250-12V4K 1500 0.13 1125 1.5
PG22-250-12V5K 1200 0.16 900 1.5
PG22-250-12V16K 375 0.45 281 2
PG22-250-12V19K 315.8 0.53 237 2
PG22-250-12V23K 260.9 0.64 196 2
PG22-250-12V64K 93.8 1.54 70 3.5
PG22-250-12V76K 78.9 1.82 59 3.5
PG22-250-12V90K 66.7 2.16 50 3.5
PG22-250-12V107K 56.1 2.57 42 3.5
PG22-250-12V256K 23.4 5.12 18 3.5
PG22-250-12V304K 19.7 6.08 15 3.5
PG22-250-12V361K 16.6 7.22 12 3.5
PG22-250-12V509K 11.8 10.18 9 3.5
PG22-250-24V4K 1500 0.13 1125 1.5
PG22-250-24V5K 1200 0.16 900 1.5
PG22-250-24V16K 375 0.45 281 2
PG22-250-24V19K 315.8 0.53 237 2
PG22-250-24V23K 260.9 0.64 196 2
PG22-250-24V64K 93.8 1.54 70 3.5
PG22-250-24V76K 78.9 1.82 59 3.5
PG22-250-24V90K 66.7 2.16 50 3.5
PG22-250-24V107K 56.1 2.57 42 3.5
PG22-250-24V256K 23.4 5.12 18 3.5
PG22-250-24V304K 19.7 6.08 15 3.5
PG22-250-24V361K 16.6 7.22 12 3.5
PG22-250-24V509K 11.8 10.18 9 3.5

Dimensions and configurations of PG22-250 mini dc planetary gear motor for reference:

pg22-250 planetary gearbox dc electric motor

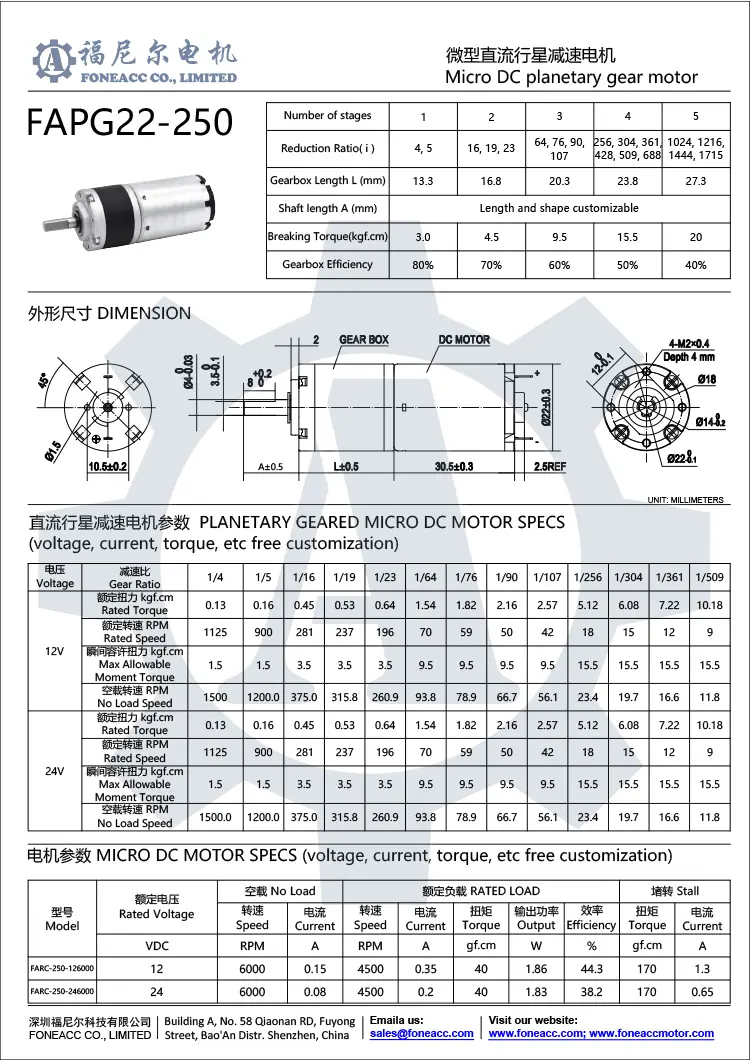

Download PG22-250 mini dc gearmotor datasheet for clear view:

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
