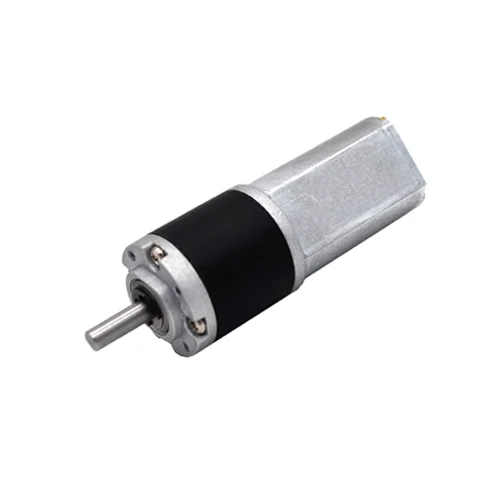

PG22-180 22mm planetary geared motor

|- Model: PG22-180;
|- Gearbox: metal planetary gear reducer;
|- Rated Voltage: DC 1.5V, 3V, 6V, 9V,12V,24V;
|- Rated Torque: Max. 8 Kgf-cm ;
|- Size : Φ22* L TBD ;
|- Shaft : concentric driveshaft, Φ4mm D-cut 0.5mm, custom;
|- Commutation: Carbon brush/Graphite brush;
|- Construction: Permanent Magnet;
|- Encoder: Magnetic encoder;
|- MOQ: 500 pcs;

PG22-180 22mm planetary geared motor


Main features:

|- Model: PG22-180;
|- Gearbox: metal planetary gear reducer;
|- Rated Voltage: DC 1.5V, 3V, 6V, 9V,12V,24V;
|- Rated Torque: Max. 8 Kgf-cm ;
|- Size : Φ22* L TBD ;
|- Shaft : concentric driveshaft, Φ4mm D-cut 0.5mm, custom;
|- Commutation: Carbon brush/Graphite brush;
|- Construction: Permanent Magnet;
|- Encoder: magnetic encoder;
|- MOQ: 500 pcs;


PG22-180 mini dc geared motor data examples:

Model No Load Rated Load
Breaking
Torque
Speed Torque Speed
r/min kgf-cm r/min kgf-cm
PG22-180-2.4V4K 2075 0.06 1725 1.5
PG22-180-2.4V5K 1660 0.07 1380 1.5
PG22-180-2.4V16K 518.8 0.21 431 2
PG22-180-2.4V19K 436.8 0.25 363 2
PG22-180-2.4V23K 360.9 0.3 300 2
PG22-180-2.4V64K 129.7 0.71 108 3.5
PG22-180-2.4V76K 109.2 0.84 91 3.5
PG22-180-2.4V90K 92.2 1 77 3.5
PG22-180-2.4V107K 77.6 1.19 64 3.5
PG22-180-2.4V256K 32.4 2.37 27 3.5
PG22-180-2.4V304K 27.3 2.81 23 3.5
PG22-180-2.4V361K 23 3.34 19 3.5
PG22-180-2.4V509K 16.3 4.71 14 3.5
PG22-180-12V4K 1625 0.05 1325 1.5
PG22-180-12V5K 1300 0.06 1060 1.5
PG22-180-12V16K 406.3 0.17 331 2
PG22-180-12V19K 342.1 0.2 279 2
PG22-180-12V23K 282.6 0.24 230 2
PG22-180-12V64K 101.6 0.58 83 3.5
PG22-180-12V76K 85.5 0.68 70 3.5
PG22-180-12V90K 72.2 0.81 59 3.5
PG22-180-12V107K 60.7 0.96 50 3.5
PG22-180-12V256K 25.4 1.92 21 3.5
PG22-180-12V304K 21.4 2.28 17 3.5
PG22-180-12V361K 18 2.71 15 3.5
PG22-180-12V509K 12.8 3.82 10 3.5

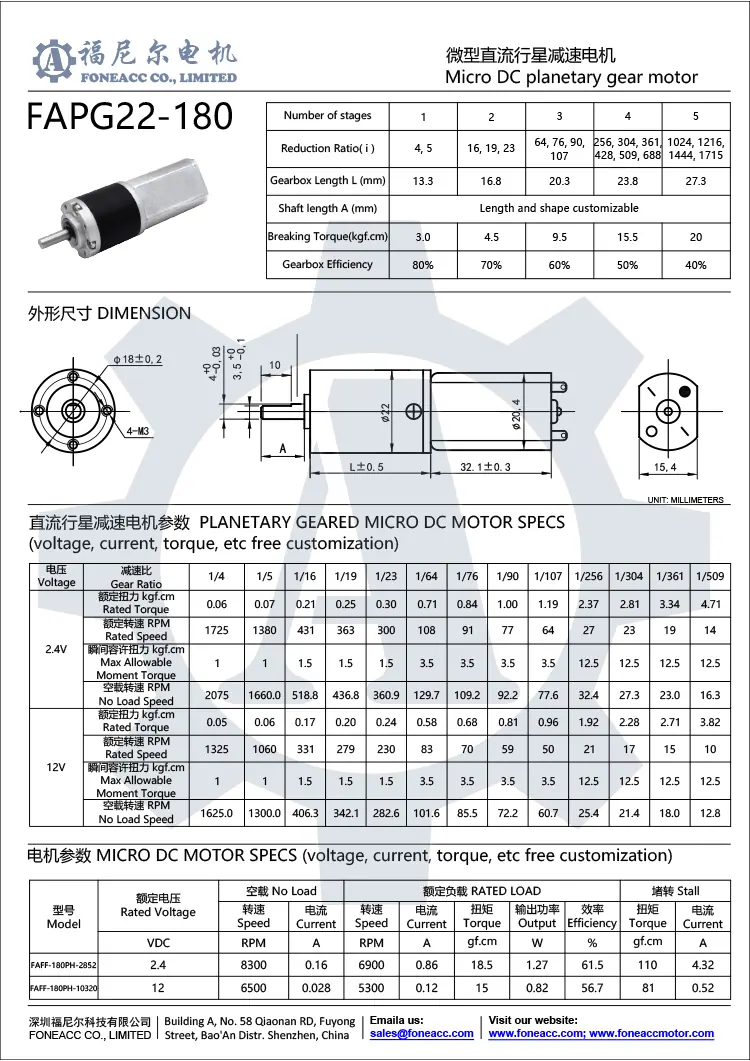

Dimensions and configurations of PG22-180 mini dc planetary gear motor for reference:

pg22-180 planetary gearbox dc electric motor


Download PG22-180 mini dc gearmotor datasheet for clear view:

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
