BL1625i B1625M 16 mm inner rotor bldc motor

| - Model Number: BL1625I
| - Shell Stator Size : Ø16* L 25 mm(Ø 0.63 inch * 0.985 inch)
| - Shaft : Ø2.0mm[0.079 inch]), screw lead, D shape, etc.
| - Shaft length free customization
| - Rated Output Power: 0.1W - 4W
| - Rated Voltage: DC 6V - 24V
| - Rated Torque: up to 12 gf-cm(1.18 mNm)
| - Rotor: Inner rotor with Nd2Fe14B strong magnet
| - Motor Structure: 3 phases, 9 slots, 12 poles, 3 hall sensors
| - Driver(Optional): built-in driver PCB with MCU
| - Construction: Permanent Magnet
| - Commutation: Brushless-PWM drive
| - Manufacturer: Foneacc Motor
| - MOQ: 500 pcs

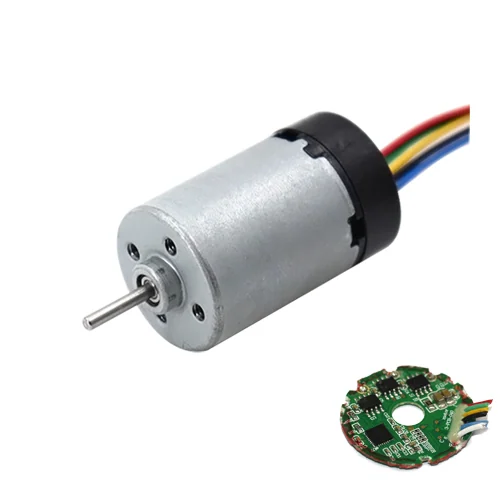

    BL1625i B1625M 16 mm inner rotor BLDC motor with built in driver.

BL1625I

Output Power: 0.1W~4.0W

Weight: 23g (Approx.)

Key features:

► Size: Ø 16.0 mm * 25.0 mm(Ø 0.63 inch * 0.985 inch)
► Built-in driver (built-in driver controller with hall sensor)
► PWM pulse wide speed range
► Clockwise/counter-clockwise rotation
► FG speed feedback signal
► Low EMC ► Low noise
► Long lifespan: up to 20000hrs
► Over-current protection ► Over-voltage protection ► Under-voltage protection

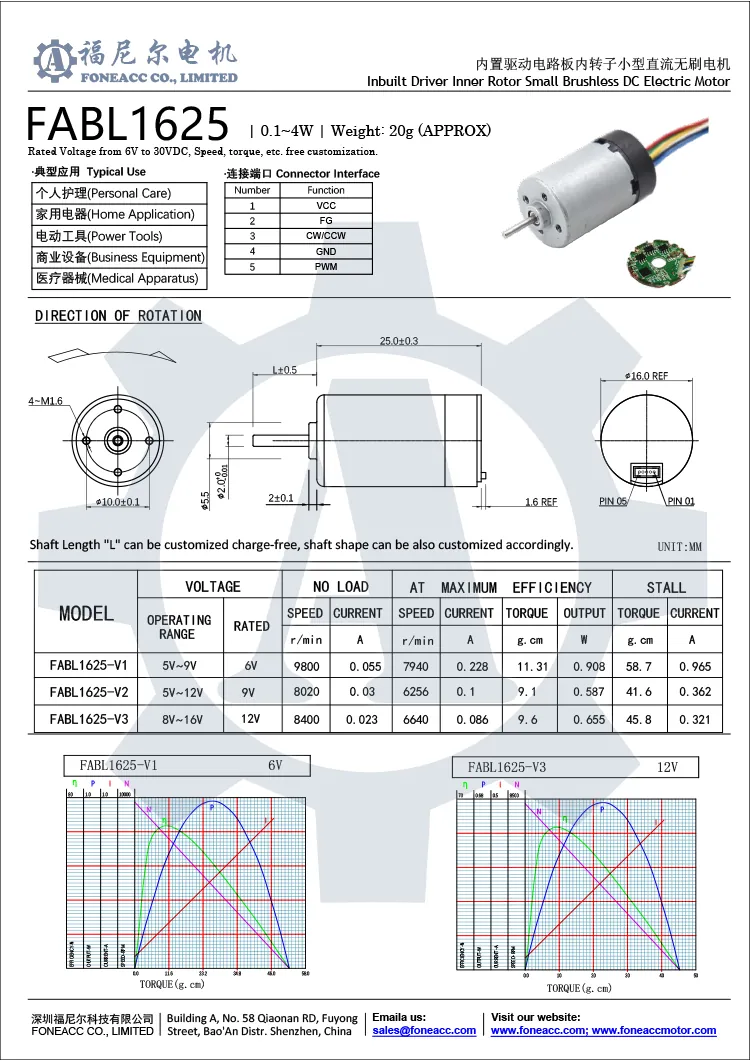

bl1625i datasheet.webp




Characteristics: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 2000-20000hrs

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power, and shaft extension feature & dimension can be changed to meet the customer-specific requirements.

    Other specifications made for some other customers are listed for your reference as below:

Model

Voltage(V)

No Load

Rated Load

Stall

Operating Range

Rated

Speed (rpm)

Current (A)

Torque (mNm)

Speed (rpm)

Current (A)

Output P. (W)

Torque (mNm)

Current (A)

BL1625I-S01

2-5

3.7

7500

0.145

0.687

5569

0.297

0.40

2.44

0.35

BL1625I-S02

5-13

6

7800

0.050

0.687

6500

0.150

0.46

4.17

0.9

BL1625I-S03

5-13

12

7850

0.034

0.687

6570

0.080

0.475

4.26

0.8

BL1625I-S04

5-13

12

49265

0.314

0.687

47462

0.538

3.413

18.76

0.8

BL1625I-S05

5-13

6

9995

0.082

1.001

8045

0.261

0.843

5.087

0.9

BL1625I-S06

5-13

12

26600

0.118

1.501

22565

0.415

3.547

9.895

0.8
