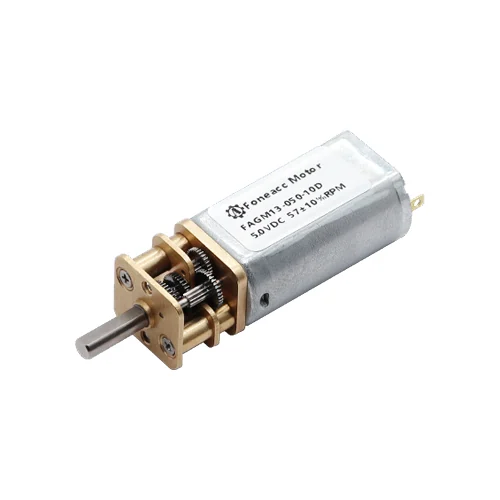

GM13-050 13mm DC Spur Gear Motor | Foneacc Motor

|- Model: GM13-050;
|- Gearbox: 13 mm metal spur gear reducer;
|- Rated Voltage: DC 1.5V,3V,4.5V,5V,6v,9v,12v,24v;
|- Rated Torque: Max. 2.3Kgf-cm ;
|- Size : Φ13 * L TBD ;
|- Shaft : Φ3mm D-cut 0.5mm, M3, M4, custom;
|- Encoder : Magnetic encoder available;
|- Commutation: Carbon brush/Graphite brush/Metal brush;
|- Construction: micro Permanent Magnet iron cored dc electric motor;
|- MOQ : 500 pcs

GM13-050 13mm DC Spur Gear Motor


Main features:

|- Model: GM13-050;
|- Gearbox: 13 mm metal spur gear reducer;
|- Rated Voltage: DC 1.5V,3V,4.5V,5V,6v,9v,12v,24v;
|- Rated Torque: Max. 2.3Kgf-cm ;
|- Size : Φ13 * L TBD ;
|- Shaft : Φ3mm D-cut 0.5mm, M3, M4, custom;
|- Encoder : magnetic encoder available;
|- Commutation: Carbon brush/Graphite brush/Metal brush;
|- Construction: micro Permanent Magnet iron cored dc electric motor;
|- MOQ : 500 pcs


GM13-050 dc geared motor data examples:

Gear Box Data:

gearbox length (mm) stages reduction ratio rated torque Breaking torque
g.cm
11 2 3/1 7/1 10/1       300 600
4 20/1 30/1 35/1 50/1 63/1 86/1 500 1000
5 115/1 150/1 210/1 250/1 360/1   800 1600
14.1 7 1000/1 1500 3000

GM13-050 Spur Geared Motor Data(for reference only, specs can be customized accordingly):

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL

Range

Rated Speed Current Speed Current Torque P.out Torque Current
V rpm A rpm A g.cm W g.cm A
GM13-050-150K0374 2.0~4.0 3 74 0.11 60 0.46 610 0.38 3130 1.9
GM13-050-70K12200 5.0~12.0 12 200 0.046 160 0.19 420 0.69 2160 0.8
GM13-050-210K0638 3.0~7.0 6 38 0.09 31 0.37 1400 0.45 7320 1.52
GM13-050-50K06240 3.0~7.0 6 240 0.07 192 0.3 300 0.59 1520 1.3

Dimensions and configurations of GM13-050 dc gear motor for reference:

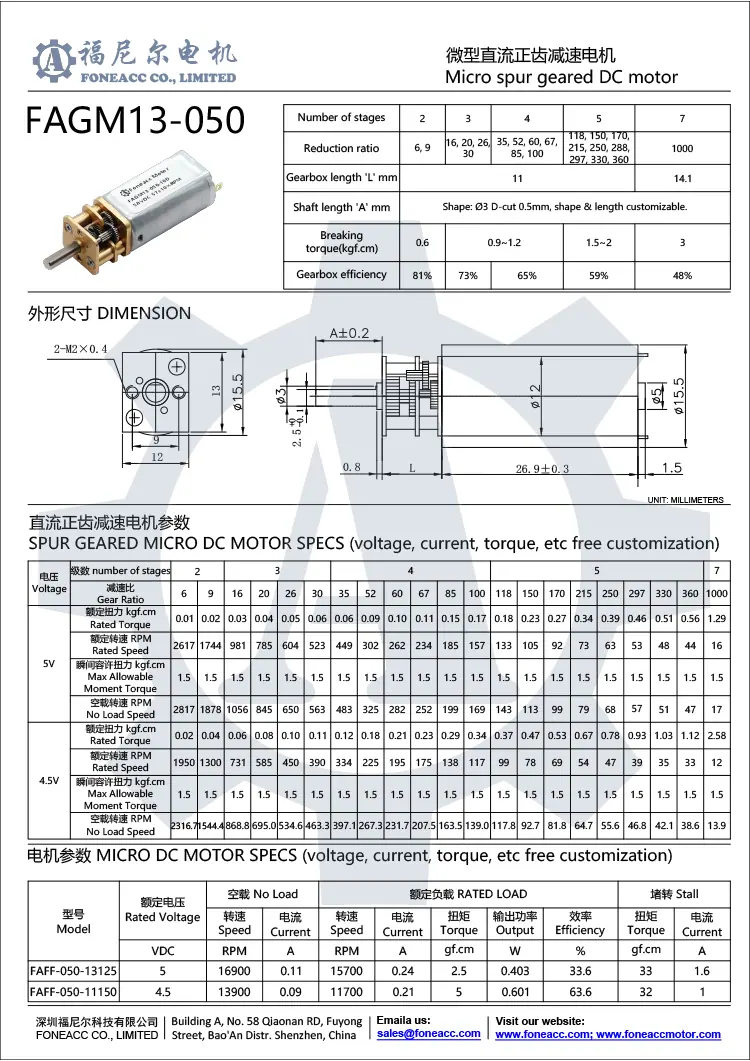

gm13-050 small spur geared brush dc electric motor datasheet


Download GM13-050 DC gearmotor datasheet for clear view:

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
