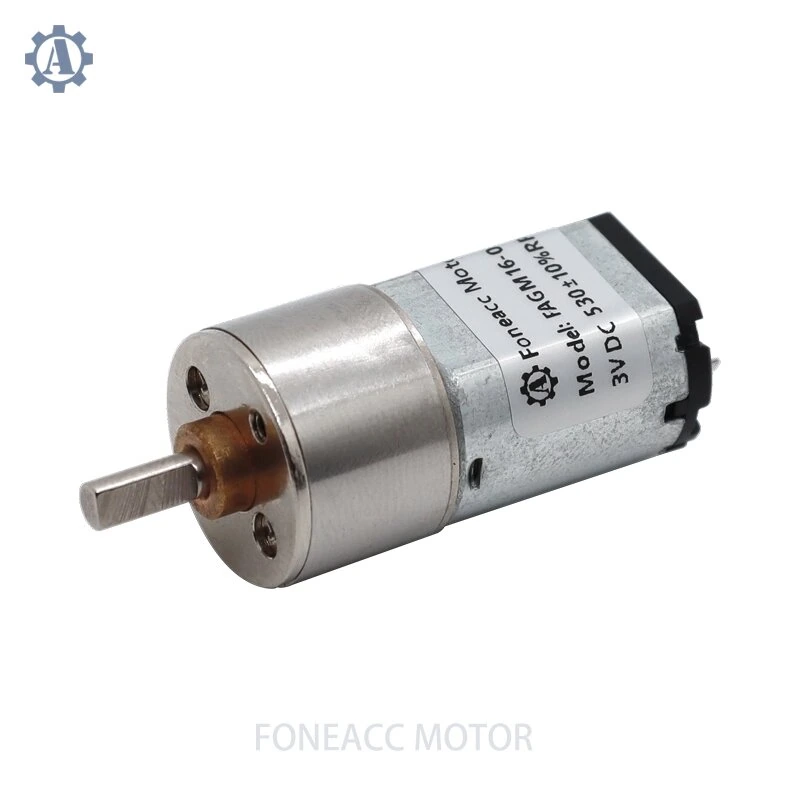

GM16-030 FF030 16mm DC Spur Gear Motor | FoneAcc Motion

|- Model: GM16-030;
|- Gearbox: 16 mm metal spur gear reducer;
|- Rated Voltage: DC 1.5V,3V,4.5V,5V,6v,9v,12v,24v;
|- Rated Torque: Max. 2.5Kgf-cm ;
|- Size : Ø16 * L TBD ;
|- Shaft : Ø3mm D-cut 0.5mm, M3, M4, custom;
|- Encoder : Magnetic encoder available;
|- Commutation: Carbon brush/Graphite brush/Metal brush;
|- Construction: micro Permanent Magnet iron cored dc electric motor;
|- MOQ : 500 pcs

Gear Box Data:



Gearbox   Length (mm) Stage Number Reduction   Ratio Rated Torque Bearable Maximum Instant Torque
kg.cm
11 3 11.5/1 14/1 0.2 0.5
12.5 4 23/1 28/1 32/1 40/1 0.3 0.7
14 5 46/1 56/1 65/1 80/1 91/1 112/1 0.4 0.8
15.5 6 130/1 159/1 183/1 224/1 257/1 315/1 0.5 1
17 7 365/1 448/1 515/1 630/1 725/1 889/1 0.6 1.2



Spur Geared Motor Data:



MODEL REDUCTION RATIO VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
V rpm A rpm A kg.cm W kg.cm A
16GA030-14-061200 14/1 3.0~6.0 6 1200 0.08 945 0.06 0.06 0.58 0.29 1.12
16GA030-112-03120 112/1 2.0~4.0 3 120 0.1 96 0.42 0.36 0.35 1.8 1.65
16GA030-515-1225 515/1 5.0~12.0 12 25 0.05 19 0.16 1.6 0.31 6.45 0.48





Specs for reference:

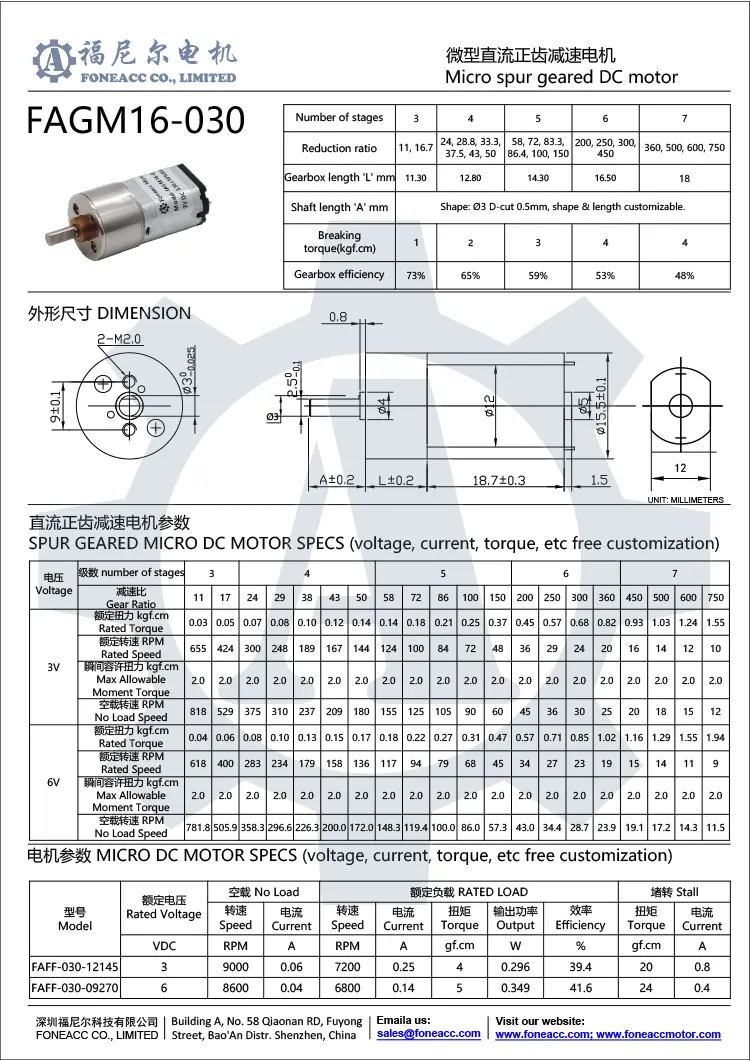

gm16-030 small spur geared brush dc electric motor datasheet


Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.

-----


Click here to view HD clear specification of gm16-030 gear motor.
