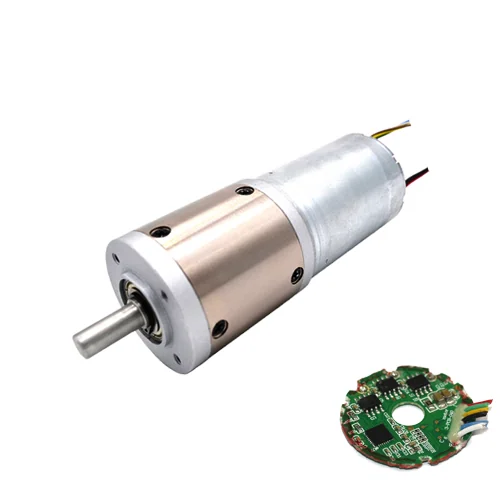

PG45-BL4260 45mm mini epicyclic(planetary) gear motor

PG45-BL4260 45mm mini epicyclic(planetary) gear motor

---

Main features:

|- Model: PG45-BL4260; BL4260 BLDC motor with gearbox.
|- Gearbox: metal planetary gear reducer;
|- Rated Voltage: DC 9V,12V,24V,36V;
|- Rated Torque: Max. 330Kgf-cm ;
|- Size : Φ45* L TBD ;
|- Shaft : concentric driveshaft, Φ10mm D-cut 2mm, custom;
|- Commutation: Brushless, PWM-driven;
|- Construction: Permanent Magnet;
|- Control: Built-in driver board with hall sensors;
|- MOQ: 500 pcs;

---

PG45-BL4260 mini bldc planetary geared motor data examples:

Model	No Load	Rated Load		Breaking Torque
	Speed	Torque	Speed
	r/min	kgf-cm	r/min	kgf-cm
PG45-BL4260-12V4K	1500	1.63	1250	35
PG45-BL4260-12V6K	1000	2.44	833	35
PG45-BL4260-12V17K	352.9	6.05	294	95
PG45-BL4260-12V24K	250	8.53	208	95
PG45-BL4260-12V36K	166.7	12.8	139	95
PG45-BL4260-12V75K	80	22.86	67	180
PG45-BL4260-12V104K	57.7	31.7	48	180
PG45-BL4260-12V144K	41.7	43.89	35	180
PG45-BL4260-12V216K	27.8	54.86	23	360
PG45-BL4260-12V325K	18.5	82.55	15	360
PG45-BL4260-12V451K	13.3	114.55	11	360
PG45-BL4260-12V624K	9.6	158.5	8	360
PG45-BL4260-12V864K	6.9	219.46	6	360
PG45-BL4260-24V4K	1500	2.65	1300	35
PG45-BL4260-24V6K	1000	3.98	867	35
PG45-BL4260-24V17K	352.9	9.87	306	95
PG45-BL4260-24V24K	250	13.93	217	95
PG45-BL4260-24V36K	166.7	20.89	144	95
PG45-BL4260-24V75K	80	37.31	69	180
PG45-BL4260-24V104K	57.7	51.73	50	180
PG45-BL4260-24V144K	41.7	71.63	36	180
PG45-BL4260-24V216K	27.8	89.53	24	360
PG45-BL4260-24V325K	18.5	134.71	16	360
PG45-BL4260-24V451K	13.3	186.94	12	360
PG45-BL4260-24V624K	9.6	258.65	8	360
PG45-BL4260-24V864K	6.9	358.13	6	360

---

Dimensions and configurations of PG45-BL4260 mini bldc planetary gear motor for reference:

---

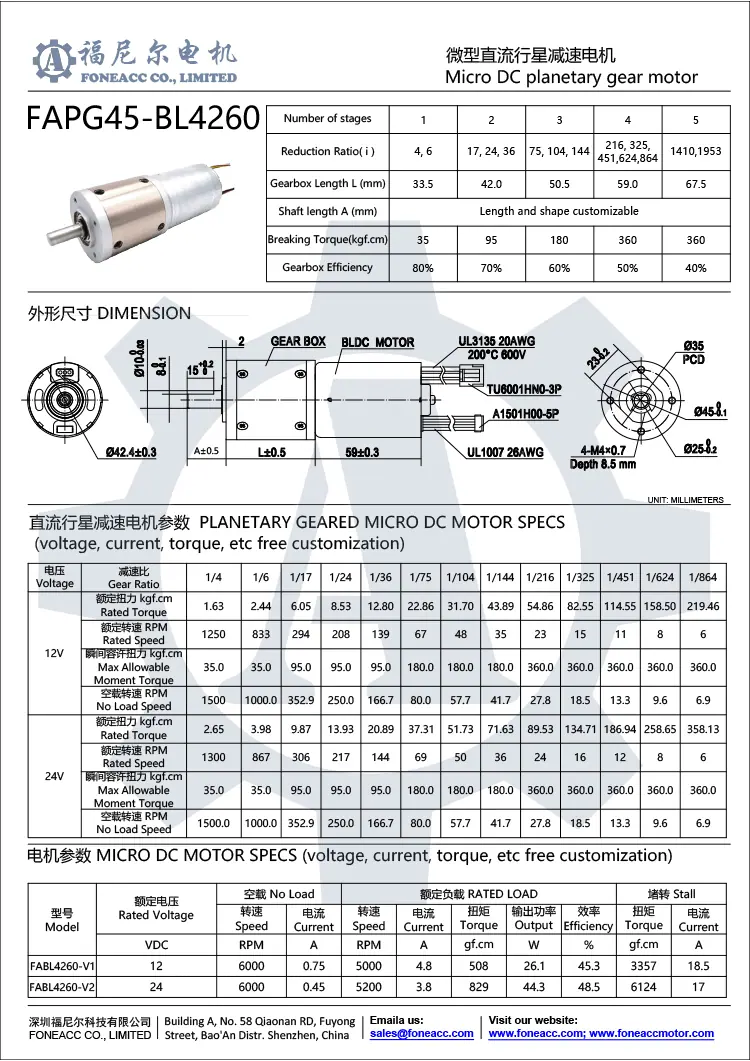

Download PG45-BL4260 mini dc gearmotor datasheet for clear view:

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
