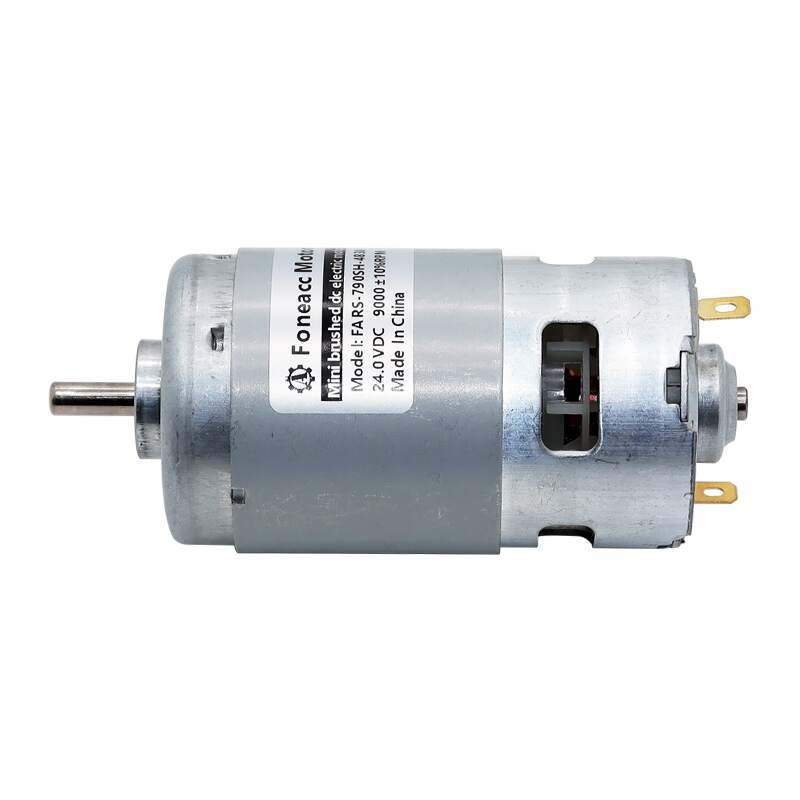

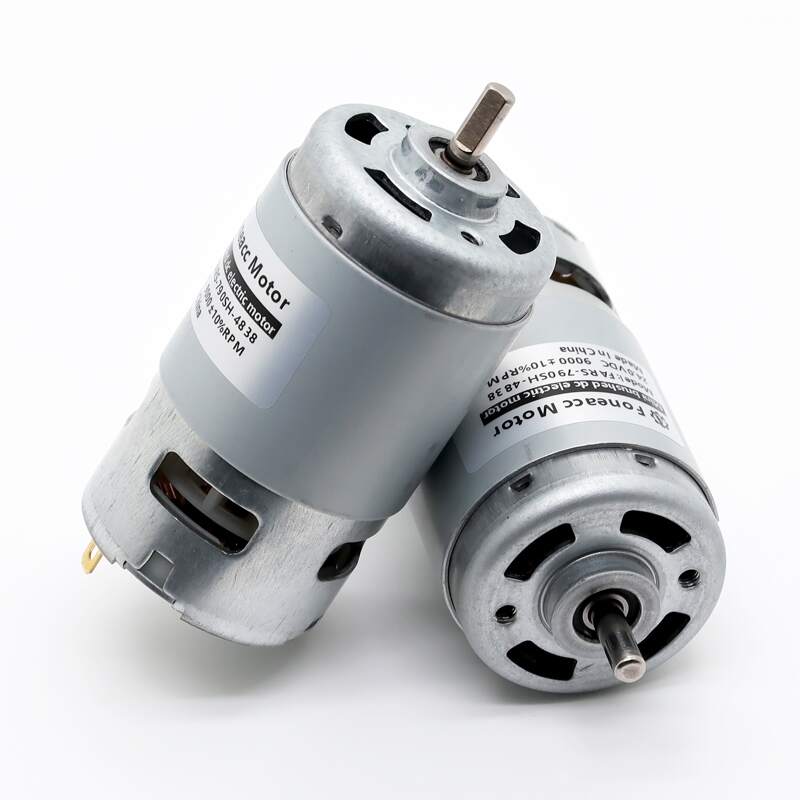

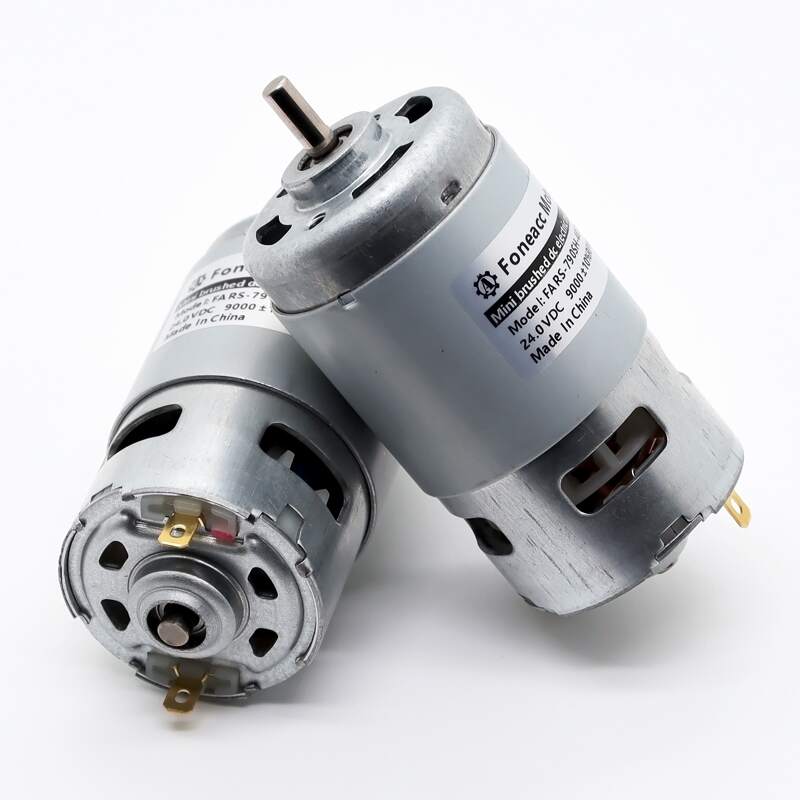

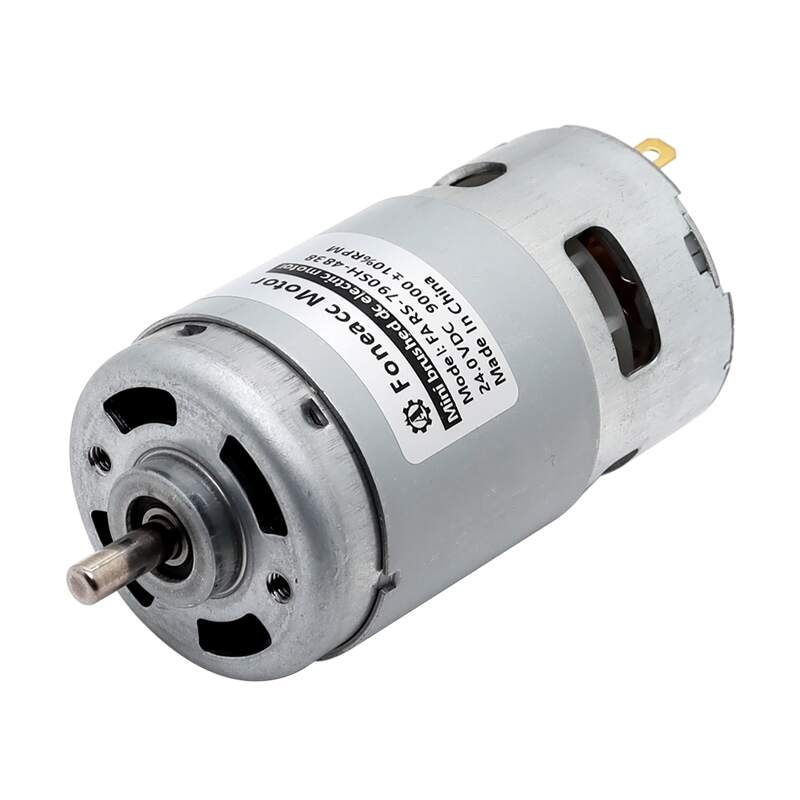

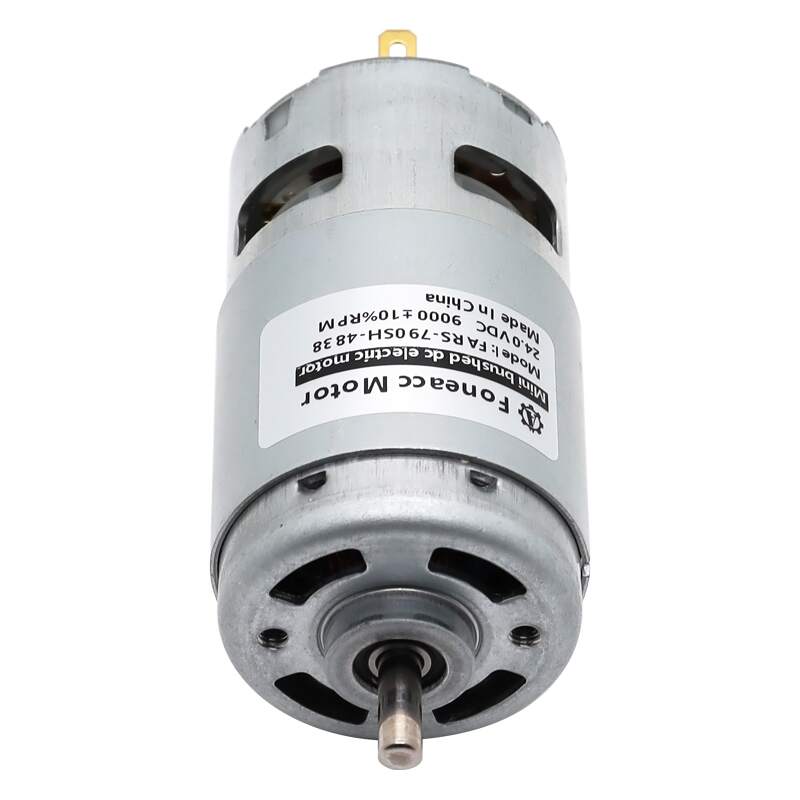

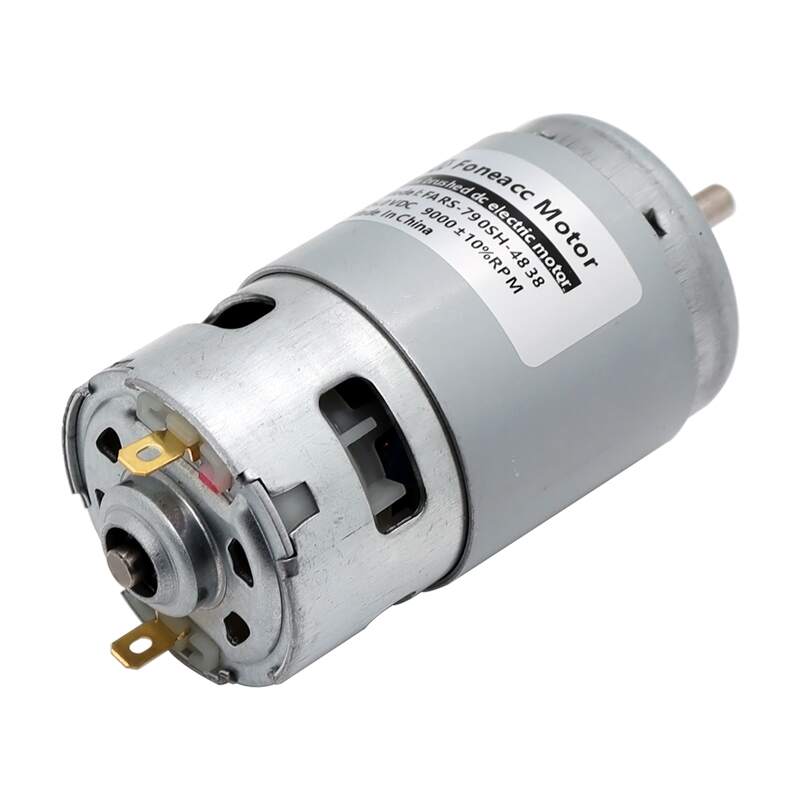

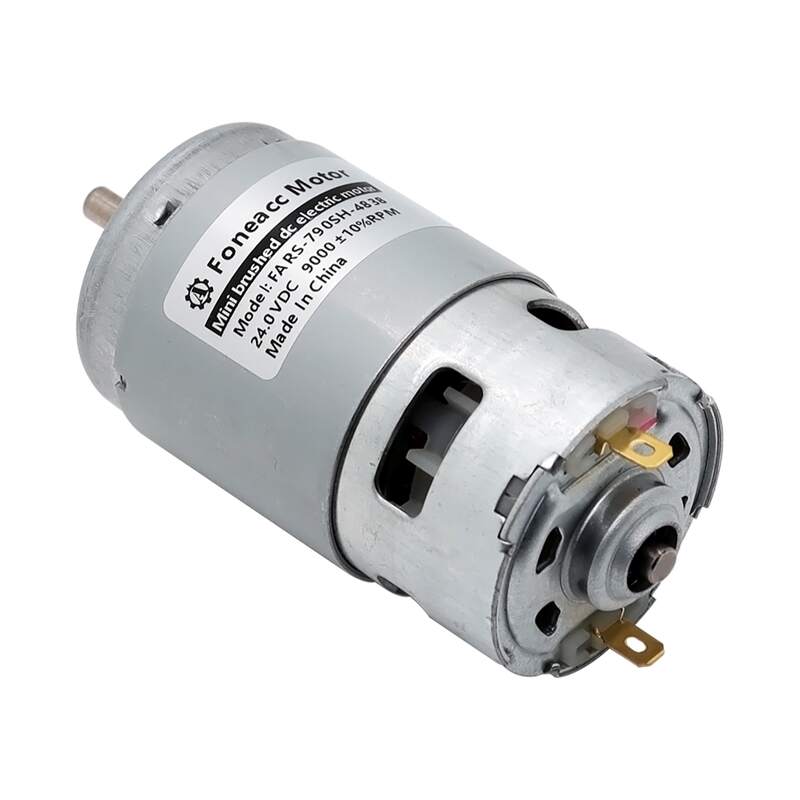

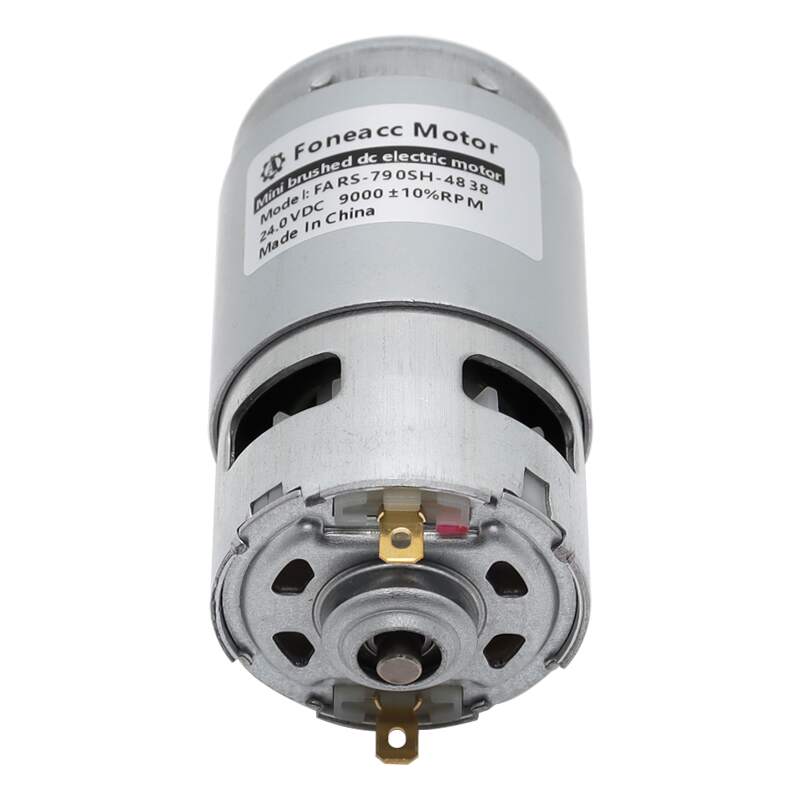

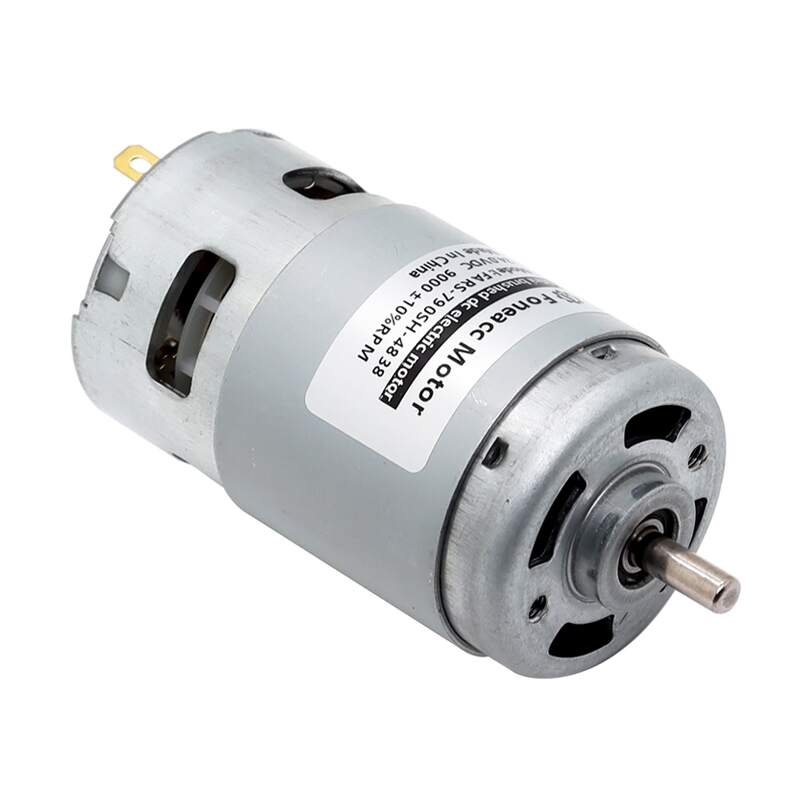

|- Model Number: RS-790
|- Shell Stator Size : Φ42* L 75 mm(Φ 1.653 inch * 2.953 inch)
|- Shaft : Φ5mm(0.197 inch), screw lead, D shape, etc.
|- Shaft length free customization
|- Rated Output Power: 20W - 100W
|- Rated Voltage: DC 6V - 24V
|- Rated Torque: up to 1.5 Kgf·cm(1.47 N·m)
|- Construction: Permanent Magnet
|- Commutation: Carbon brush
|- Manufacturer: Foneacc Motor
|- Clockwise/counter-clockwise rotation (CW&CCW)
|- Model Number: RS-790
|- Shell Stator Size : Φ42* L 75 mm(Φ 1.653 inch * 2.953 inch)
|- Shaft : Φ5mm(0.197 inch), screw lead, D shape, etc.
|- Shaft length free customization
|- Rated Output Power: 20W - 100W
|- Rated Voltage: DC 6V - 24V
|- Rated Torque: up to 1.5 Kgf-cm(1.47 N-m)
|- Construction: Permanent Magnet
|- Commutation: Carbon brush
|- Manufacturer: Foneacc Motor
|- Clockwise/counter-clockwise rotation (CW&CCW)

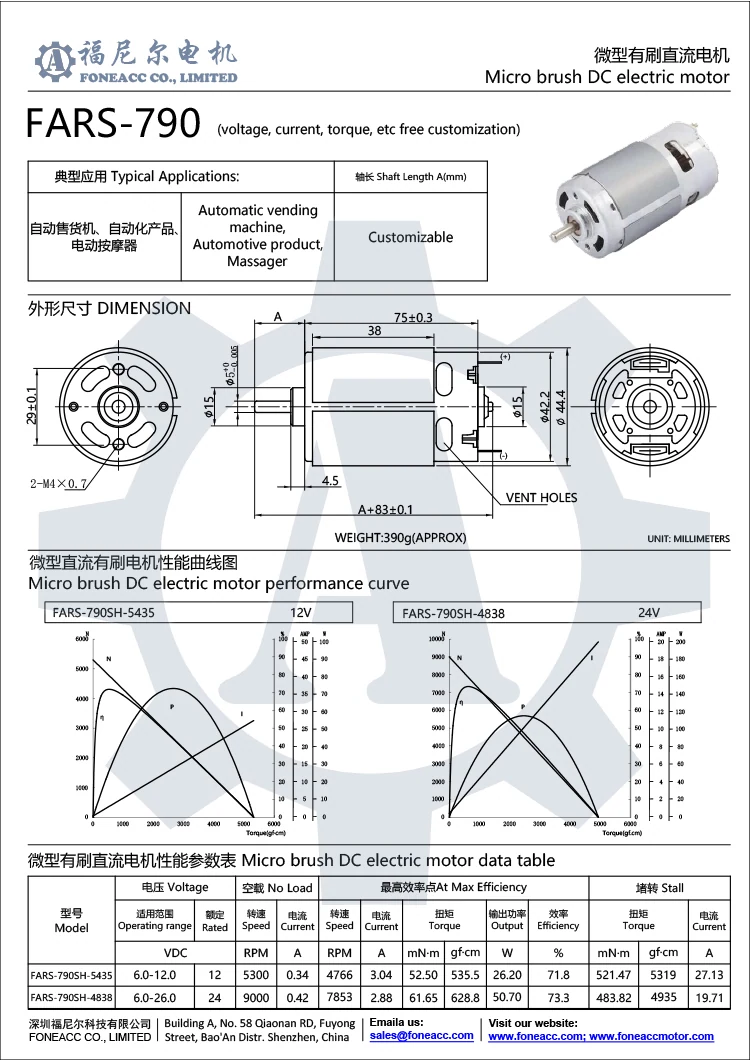

| Model | Voltage | No load | At Maximum Efficiency | Stall | |||||||
| Range | Rated | Speed | Current | Speed | Current | Torque | P.out | EFF. | Torque | Current | |
| V | R/min | A | R/min | A | g-cm | W | % | g-cm | A | ||
| RS-790SH-5435 | 6.0-12.0 | 12 | 5300 | 0.34 | 4766 | 3.04 | 535.5 | 26.20 | 71.8 | 5319 | 27.13 |
| RS-790SH-4838 | 6.0-26.0 | 24 | 9000 | 0.42 | 7853 | 2.88 | 628.8 | 50.70 | 73.3 | 4935 | 19.71 |
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
