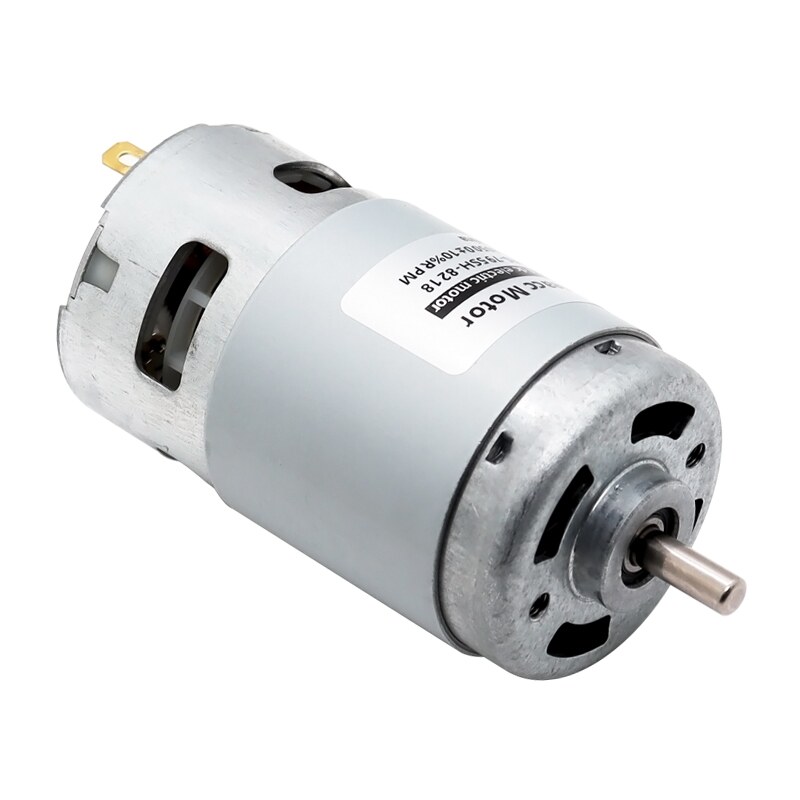

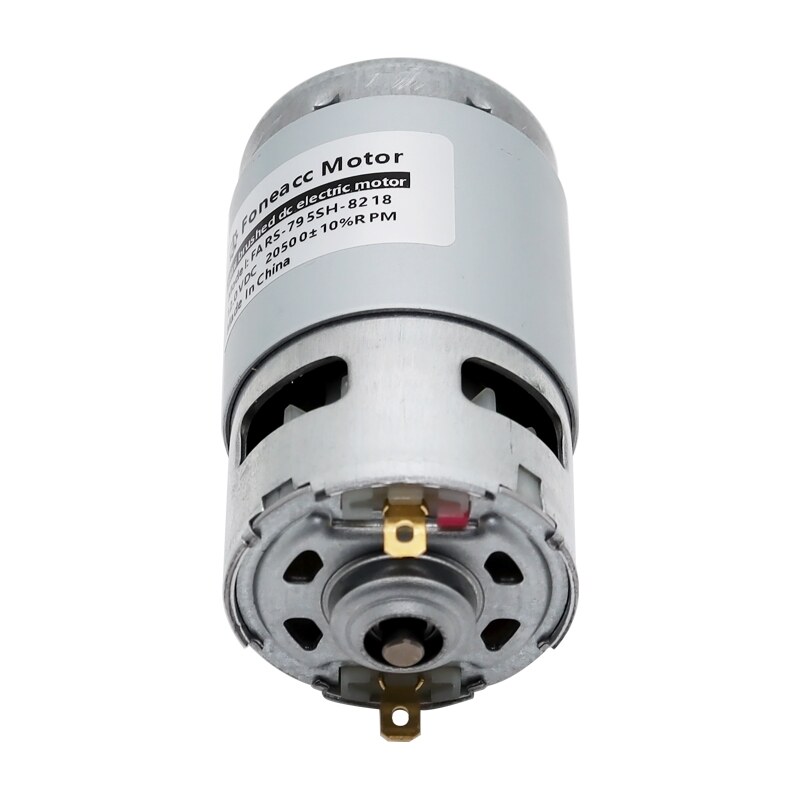

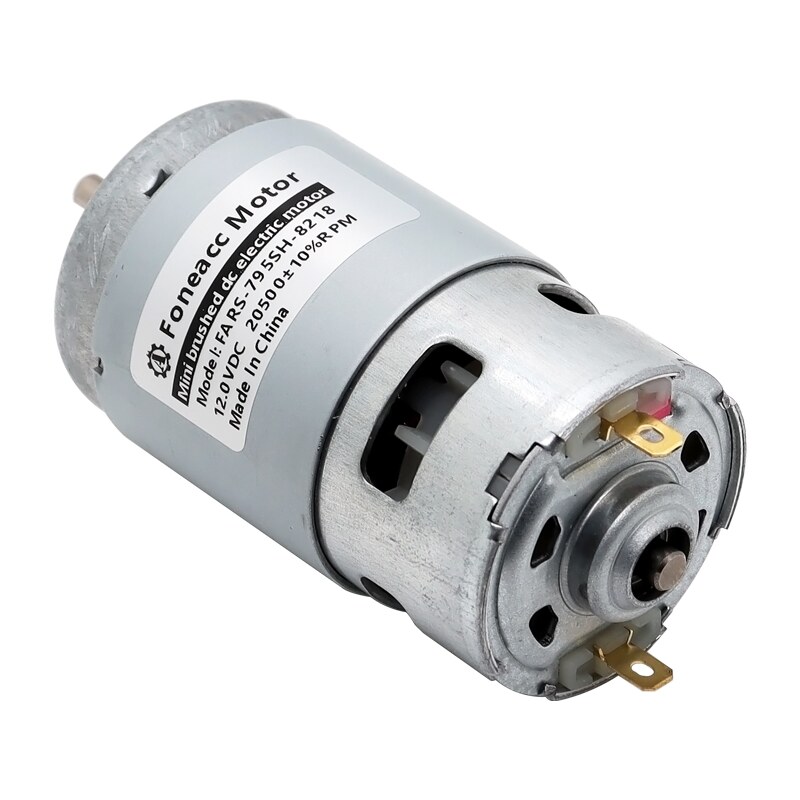

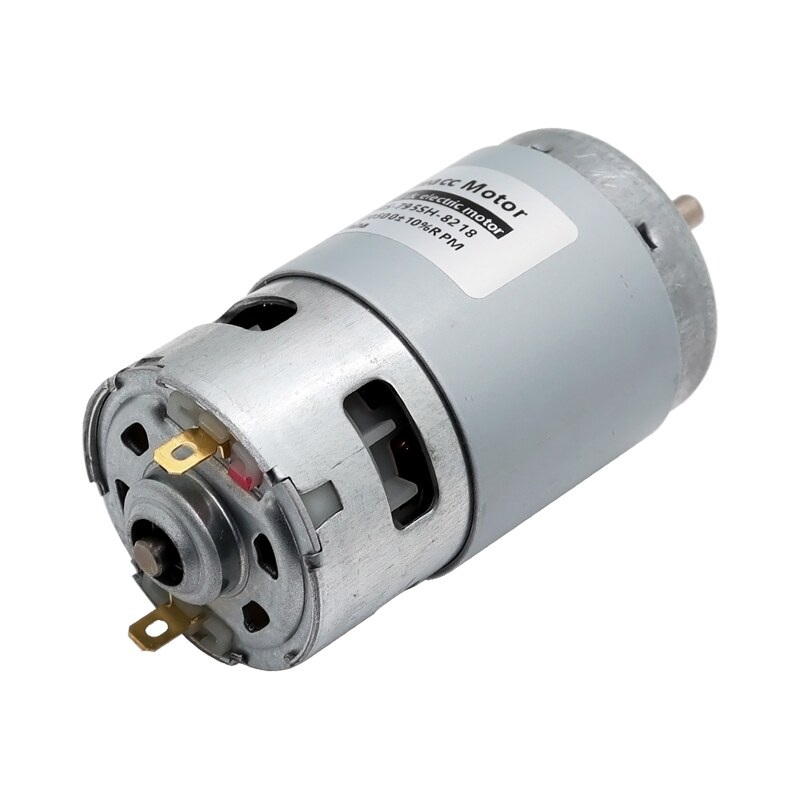

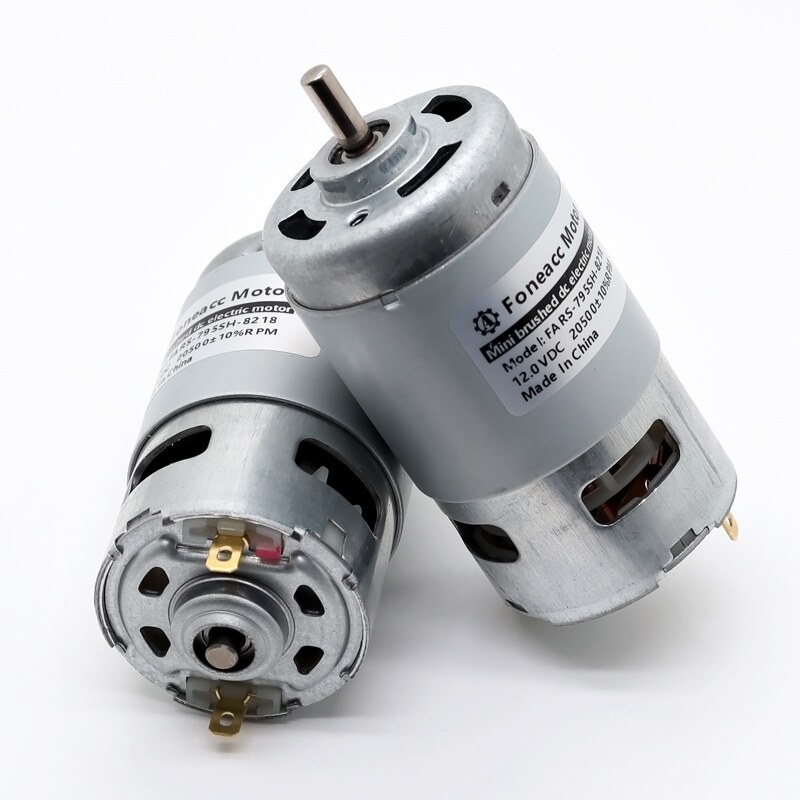

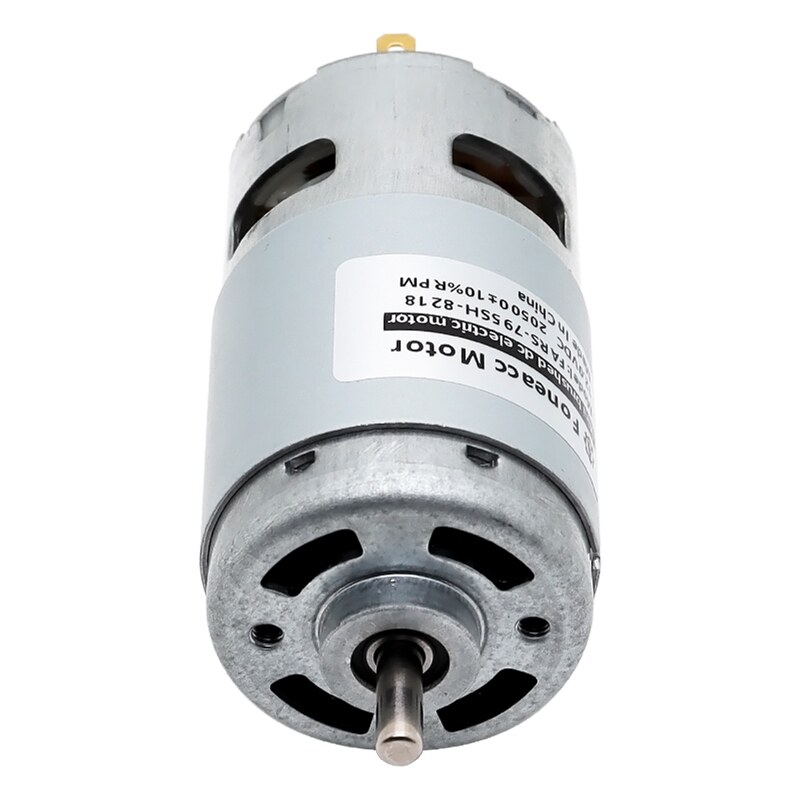

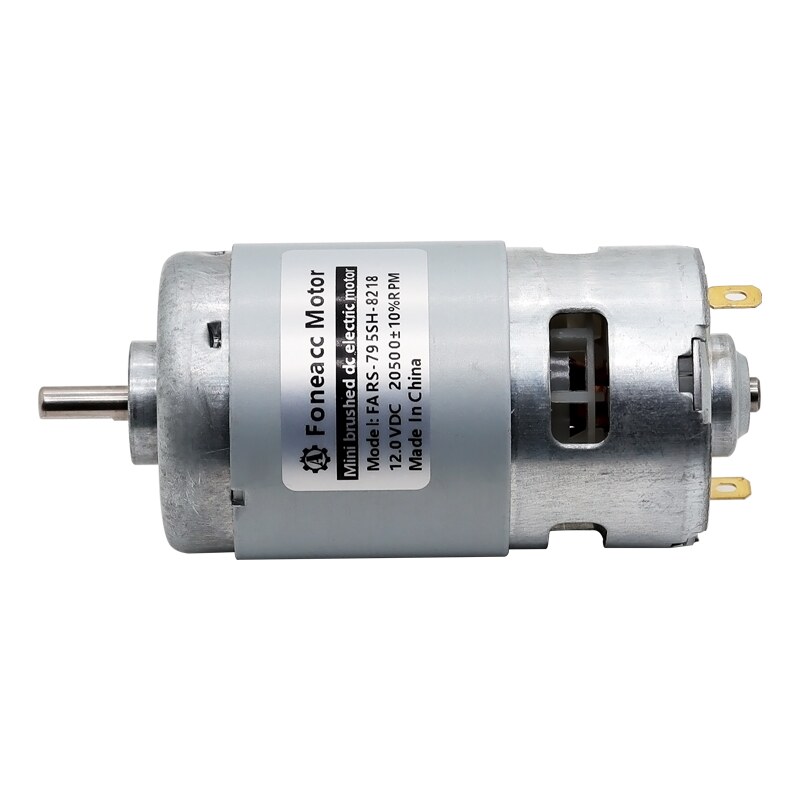

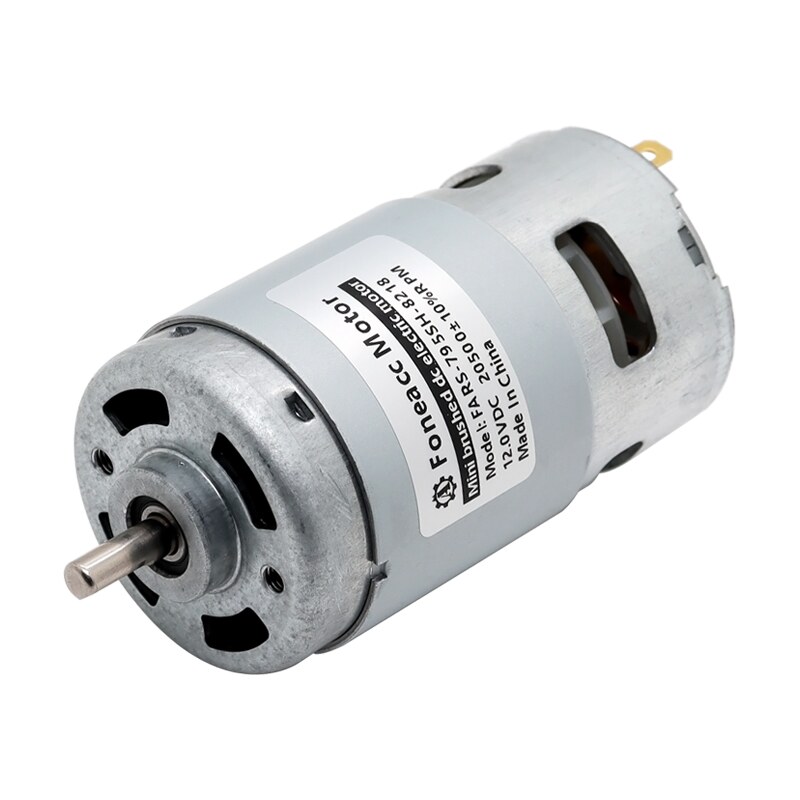

|- Model Number: RS-795
|- Shell Stator Size : Φ42* L 75 mm(Φ 1.653 inch * 2.953 inch)
|- Shaft : Φ5mm(0.197 inch), screw lead, D shape, etc.
|- Shaft length free customization
|- Rated Output Power: 20W - 100W
|- Rated Voltage: DC 6V - 24V
|- Rated Torque: up to 1.5 Kgf·cm(1.47 N·m)
|- Construction: Permanent Magnet
|- Commutation: Carbon brush
|- Manufacturer: Foneacc Motor
|- Clockwise/counter-clockwise rotation (CW&CCW)
|- Model Number: RS-795
|- Shell Stator Size : Φ42* L 75 mm(Φ 1.653 inch * 2.953 inch)
|- Shaft : Φ5mm(0.197 inch), screw lead, D shape, etc.
|- Shaft length free customization
|- Rated Output Power: 20W - 100W
|- Rated Voltage: DC 6V - 24V
|- Rated Torque: up to 1.5 Kgf-cm(1.47 N-m)
|- Construction: Permanent Magnet
|- Commutation: Carbon brush
|- Manufacturer: Foneacc Motor
|- Clockwise/counter-clockwise rotation (CW&CCW)

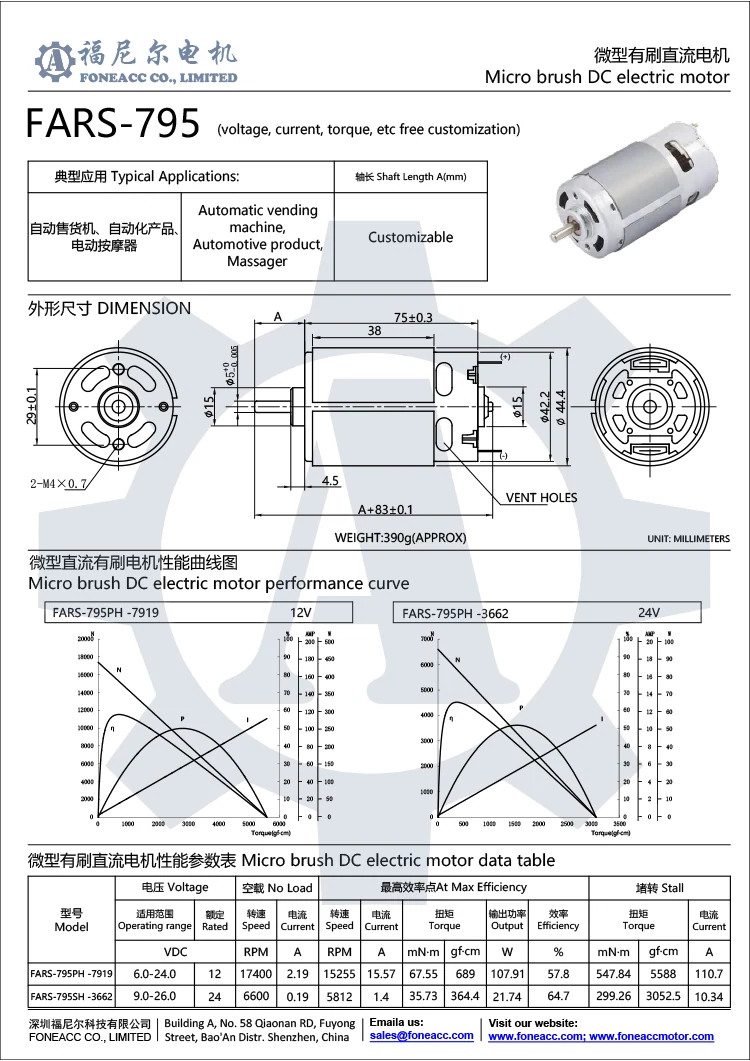

| Model | Voltage | No load | At max efficiency | Sall | |||||||
| range | rated | speed | current | speed | current | torque | P | eff. | torque | current | |
| vdc | rpm | A | rpm | A | gf-cm | w | % | gf-cm | A | ||
| RS-795PH-7919 | 6.0-12.0 | 12 | 17400 | 2.19 | 15255 | 15.57 | 689 | 107.91 | 57.8 | 5588 | 110.7 |
| RS-795PH-3662 | 9.0-26.0 | 24 | 6600 | 0.19 | 5812 | 1.4 | 364.4 | 21.74 | 64.7 | 3052.5 | 10.34 |
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
