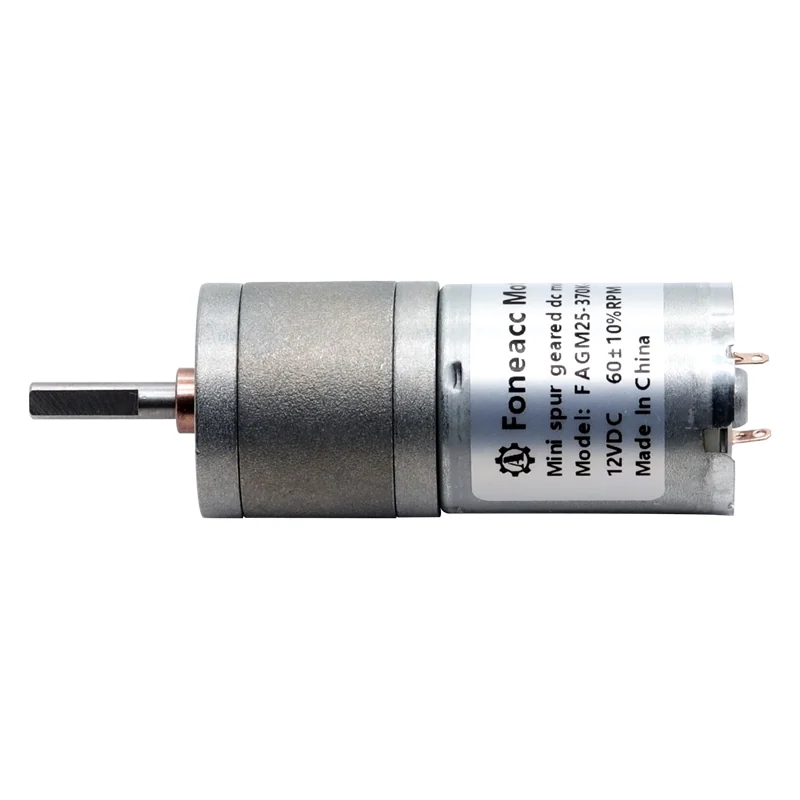

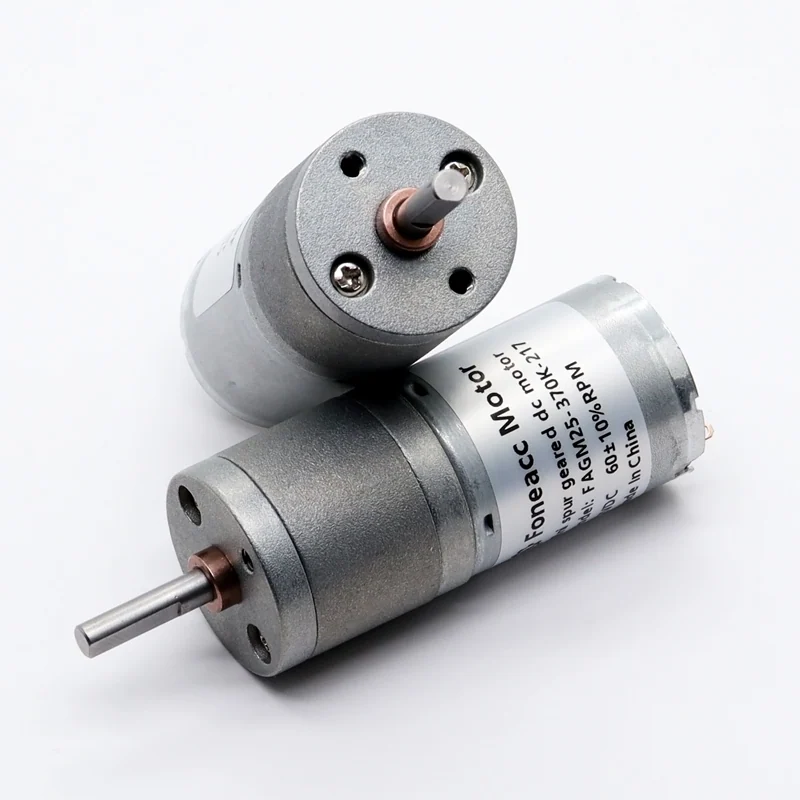

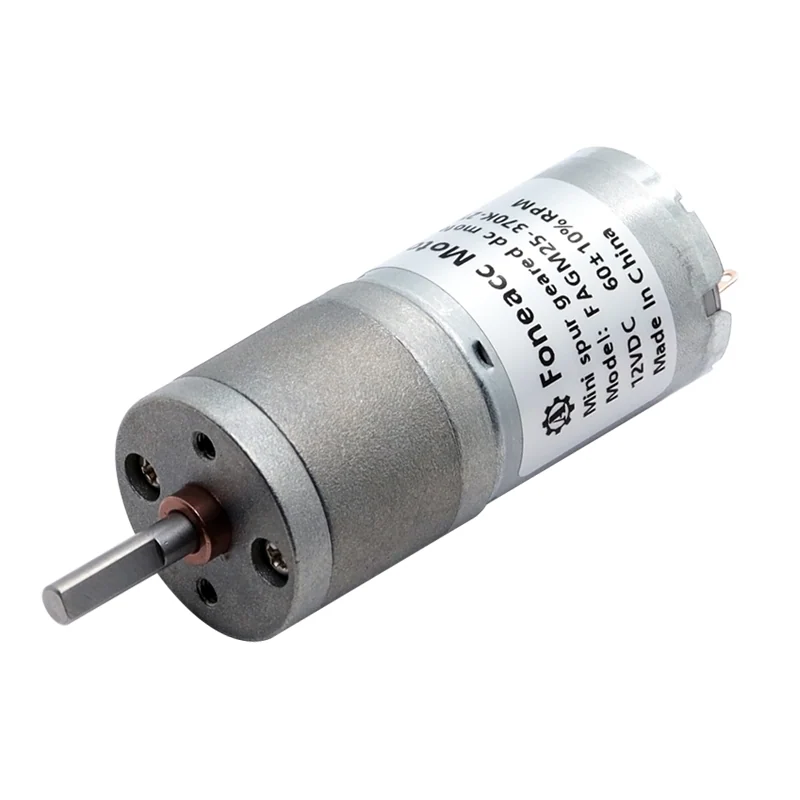

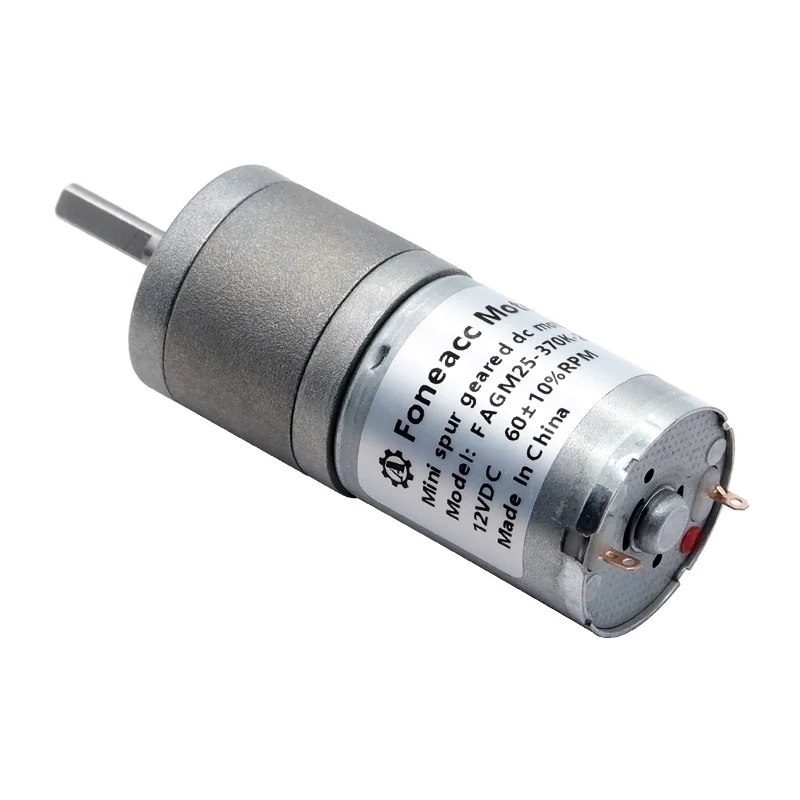

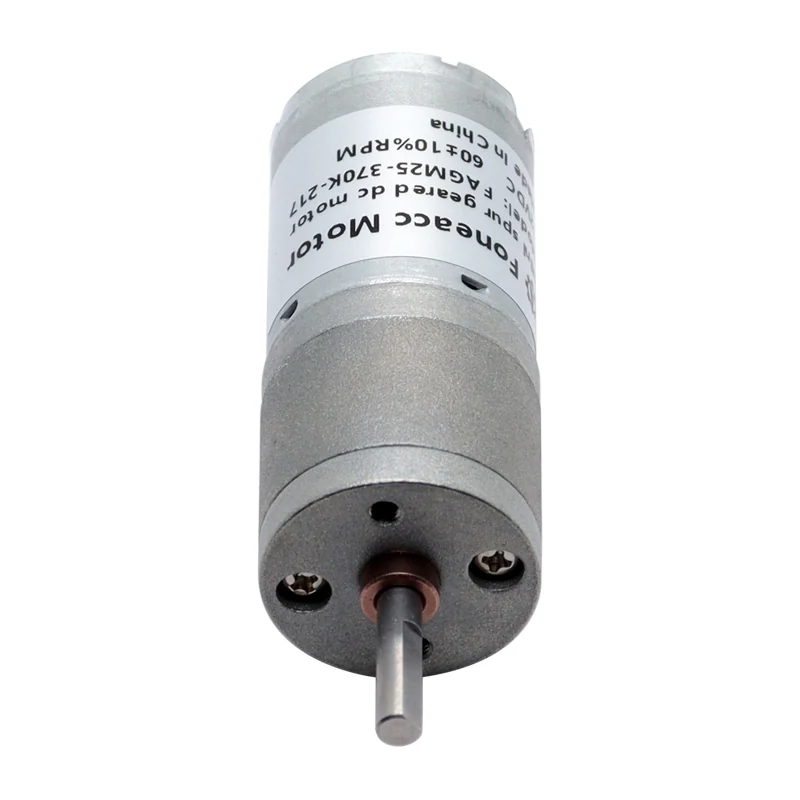

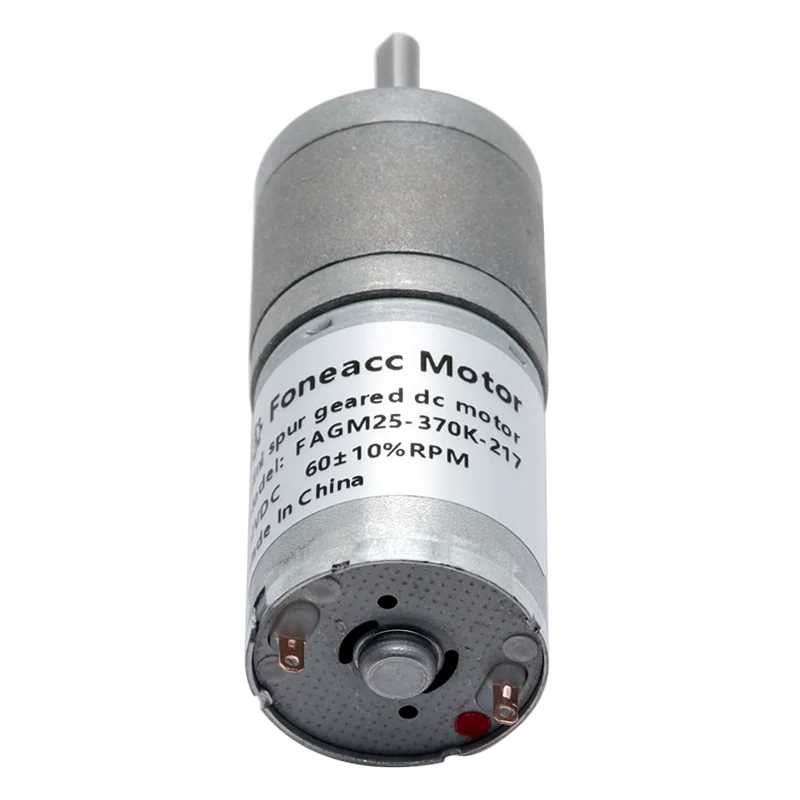

GM25-370 25mm DC spur gear motor | Foneacc Motor

|- Model: GM25-370 micro metal gearmotor;
|- Gearbox: 25 mm metal spur gear reducer;
|- Rated Voltage: DC 1.5V,3V,4.5V,5V,6v,9v,12v,24v;
|- Rated Torque: Max. 5Kgf-cm ;
|- Size : Φ25 * L TBD ;
|- Shaft : Φ4mm D-cut 0.5mm, custom;

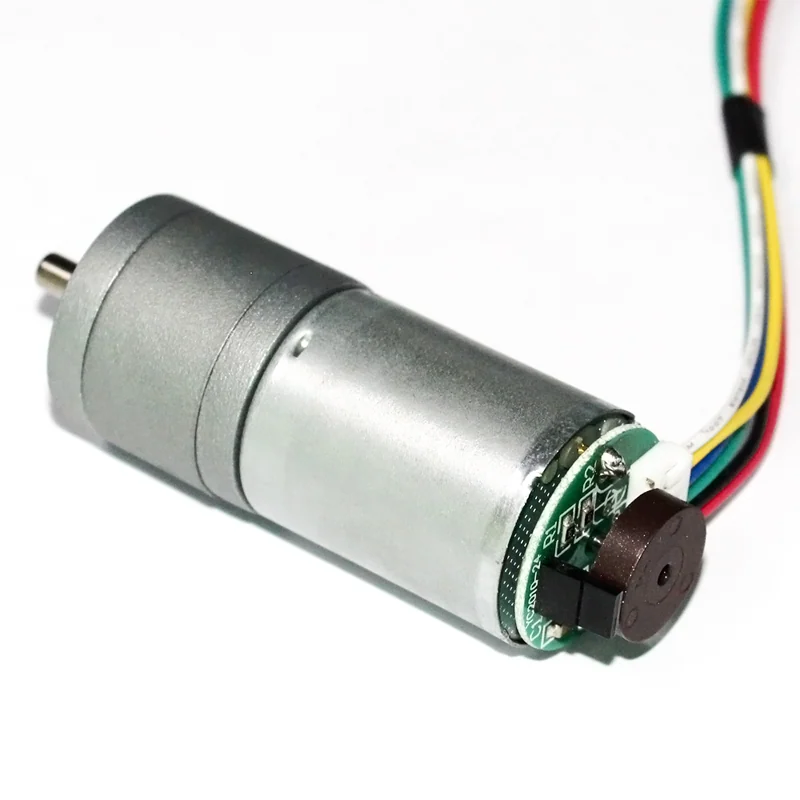

|- Encoder : Magnetic encoder available;
|- Commutation: Carbon brush/Graphite brush/Metal brush;
|- Construction: micro Permanent Magnet iron cored dc electric motor;
|- MOQ : 500 pcs

GM25-370 25mm DC spur gear motor


Main features:

|- Model: GM25-370 micro metal gearmotor;
|- Gearbox: 25 mm metal spur gear reducer;
|- Rated Voltage: DC 1.5V,3V,4.5V,5V,6v,9v,12v,24v;
|- Rated Torque: Max. 5Kgf-cm ;
|- Size : Φ25 * L TBD ;
|- Shaft : Φ4mm D-cut 0.5mm, custom;
|- Encoder : magnetic encoder available;
|- Commutation: Carbon brush/Graphite brush/Metal brush;
|- Construction: micro Permanent Magnet iron cored dc electric motor;
|- MOQ : 500 pcs


GM25-370 dc geared motor data examples:

GM25-370 Gear Box Data:

Gearbox Length (mm) Stages Reduction Ratio Rated Torque Bearable Maximum Instant Torque
kg.cm
19 4 15.5/1 20.4/1     1 3
21 5 26/1 30/1 34/1 45/1 2 6
23 6 57/1 75/1 98/1   2.5 7
25 7 125/1 165/1 217/1   3 8
27 8 274/1 362/1 478/1   3 8

GM25-370 Spur Geared Motor Data(for reference only, specs can be customized accordingly):

Model Gear
Ratio
Voltage No Load At Max Eff. Stall
Range Rated Speed Current Speed Current Torque P. out Torque Current
V rpm A rpm A kgf.cm W kgf.cm A
GM25-370-26 26/1 3.0~12.0 12 231 0.09 162 0.43 1.1 1.83 3.7 1.2
GM25-370-20.4 20.4/1 3.0~12.0 12 400 0.05 340 0.36 0.4 1.39 2.6 2.1
GM25-370-98 98/1 3.0~6.0 6 50 0.05 41 0.21 1.6 0.67 9.8 1.06
GM25-370-165 165/1 3.0~12.0 12 88 0.26 43 1.27 6 2.65 35.3 6.2
GM25-370-478 478/1 3.0~12.0 12 7.8 0.03 7 0.07 2 0.14 19.5 0.52

Dimensions and configurations of GM25-370 dc gear motor for reference:

GM25-370 small spur geared brush dc electric motor datasheet


Download GM25-370 DC gearmotor datasheet for clear view:

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
