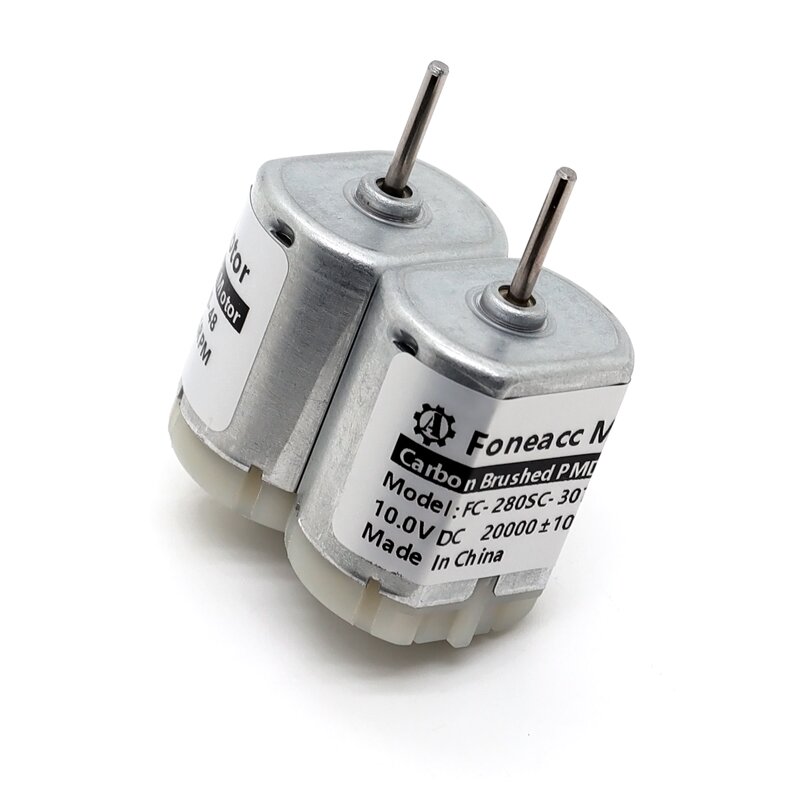

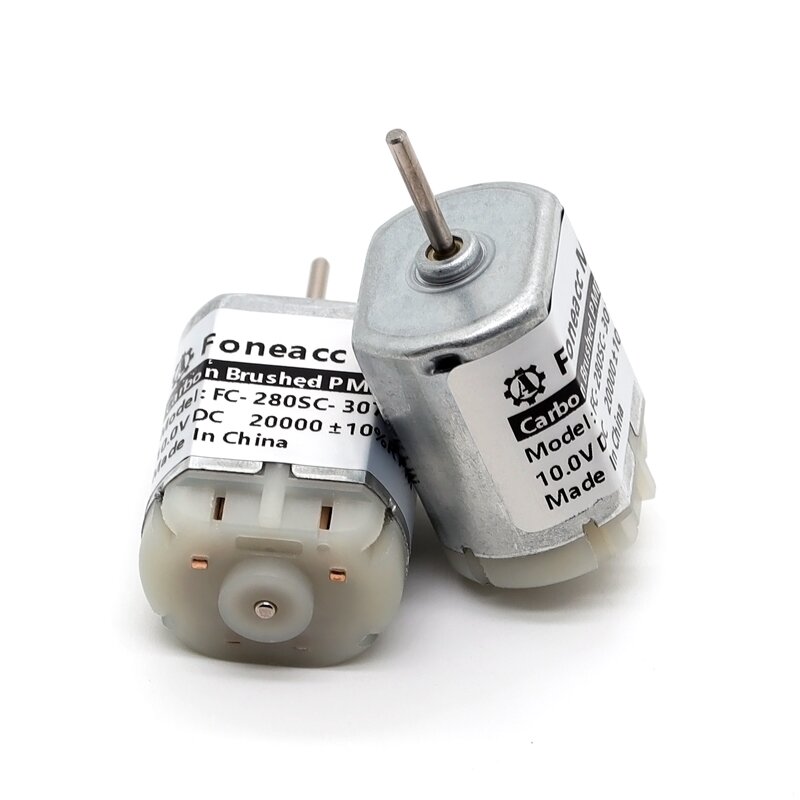

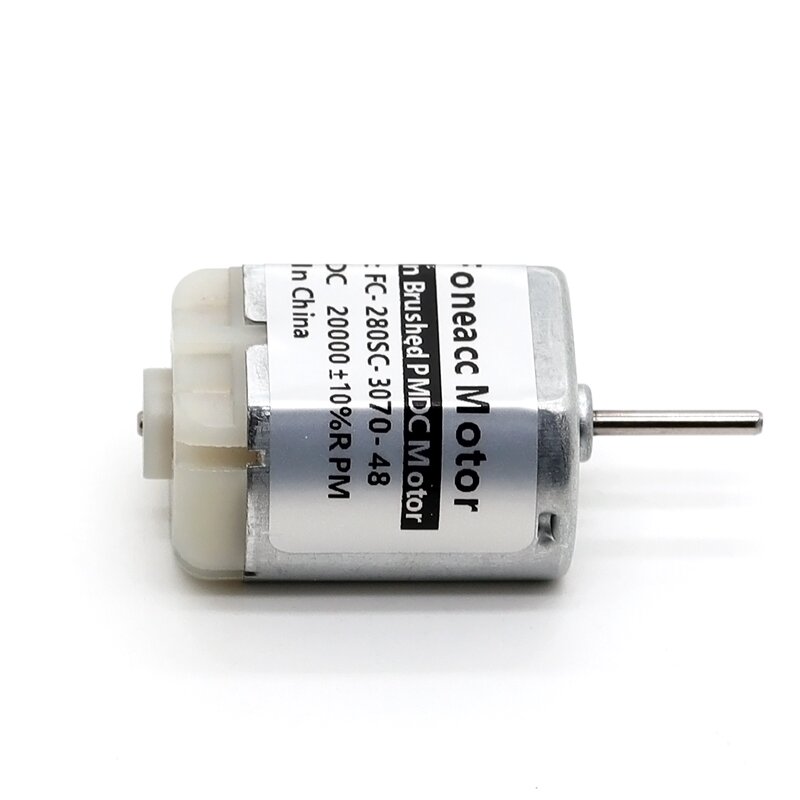

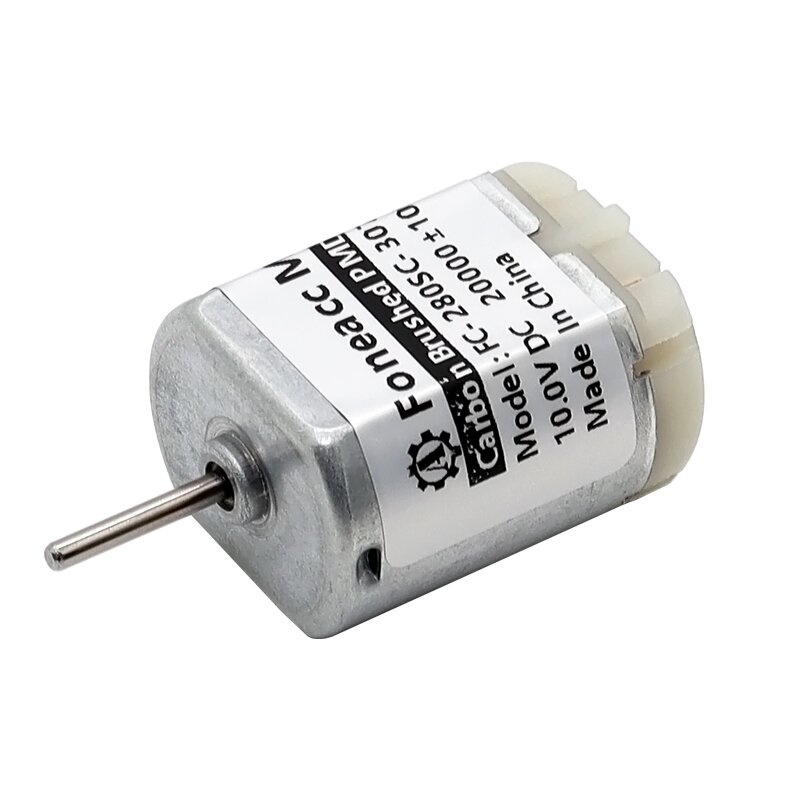

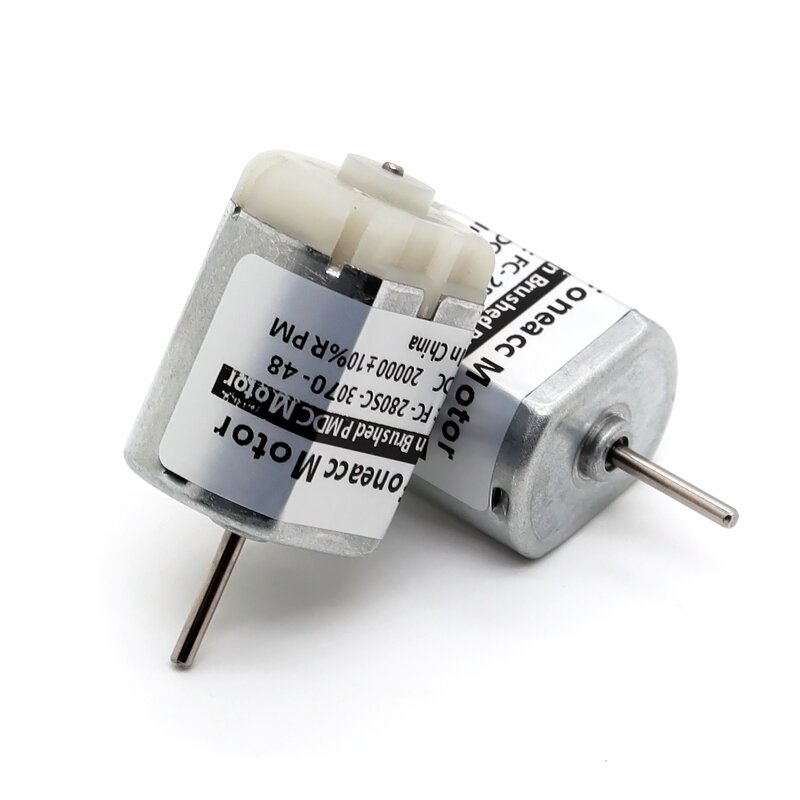

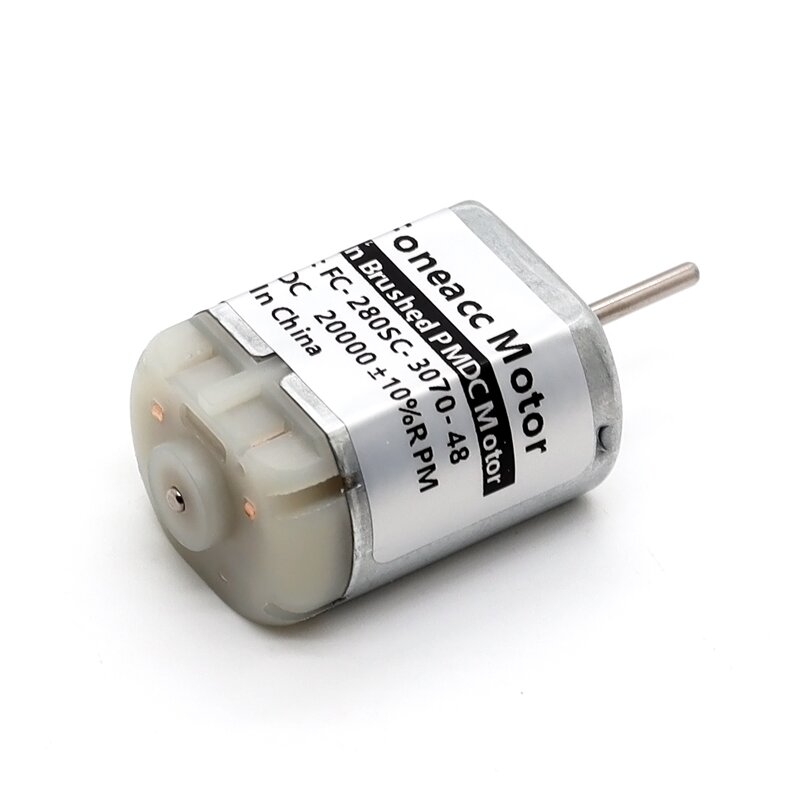

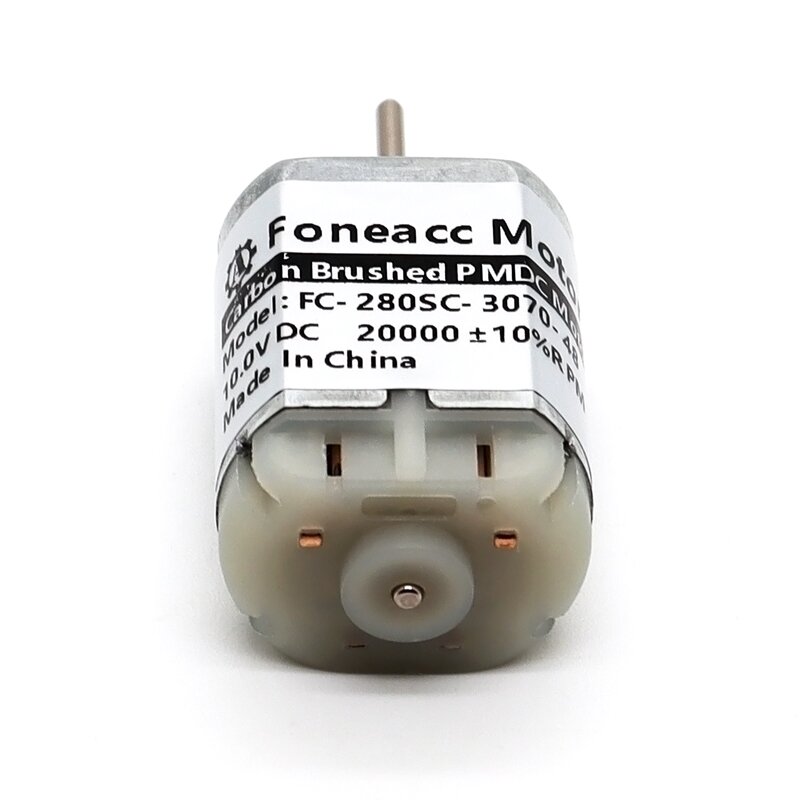

FC-280 24mm flat carbon brush dc motor for car door lock actuator

FC-280 24mm flat carbon brush dc motor for car door lock actuator

1. Model: FC-280
2. Dia.24.2*L30.5mm
3. Output power: 0.4 - 20W
2. Nominal voltage: 1.5~18V
3. Lower noise and high quality
4. ROHS approval

FC-280 24mm flat carbon brush dc motor for car door lock actuator

Main features:

1. Model: FC-280
2. Dia.24.2*L30.5mm
3. Output power: 0.4 - 20W
2. Nominal voltage: 1.5~18V
3. Lower noise and high quality
4. ROHS approval
Application in: Motor Toy, Massager, Home Appliance, R/C car and so on.

FC-280 dc motor data examples:

Model	Voltage		No load		At maximum efficiency						Stall
	Range	Rated	Speed	Current	Speed	Current	Torque		P.out	Eff.	Torque		Current
	V		R/min	A	R/min	A	mN-m	g-cm	W	%	mN-m	g-cm	A
FC-280SC-20150	8.0 - 15.0	12	11,800	0.081	10,310	0.56	4.14	42.2	4.47	66.5	32.84	335	3.9
FC-280SC-18180	8.0 - 15.0	12	9,700	0.16	7,880	0.69	5.32	54.3	4.39	53.1	28.43	290	3
FC-280SC-16220	9.0 - 14.0	12	7,900	0.055	6,780	0.33	3.26	33.3	2.32	58.5	22.94	234	2
FC-280PA-20150	9.0 - 15.0	12	12,000	0.1	10,360	0.63	4.22	43	4.57	60.5	30.88	315	4
FC-280PA-18165	9.0 - 15.0	12	11,000	0.1	9,330	0.56	4.24	43.2	4.14	61.6	27.84	284	3.12
FC-280SA-18165	10.0 - 15.0	12	12,400	0.09	10,660	0.55	3.57	36.4	3.98	60.4	25.49	260	3.4
FC-280SA-16200	10.0 - 15.0	12	10,000	0.07	8,470	0.39	3.30	33.7	2.93	62.6	21.57	220	2.15
FC-280SA-4523	1.0 - 2.0	1.2	8,700	0.58	7,100	2.58	2.42	24.7	1.80	58.2	13.24	135	11.5
FK-280PA-20150	10.0 - 15.0	12	12,000	0.1	10,330	0.62	4.45	45.4	4.81	64.7	31.86	325	3.8
FK-280PA-18165	10.0 - 15.0	12	10,500	0.09	9,000	0.54	4.12	42	3.88	59.9	28.92	295	3.25
FK-280SA-18165	10.0 - 15.0	12	12,300	0.075	10,710	0.5	3.40	34.7	3.82	63.6	26.27	268	3.4

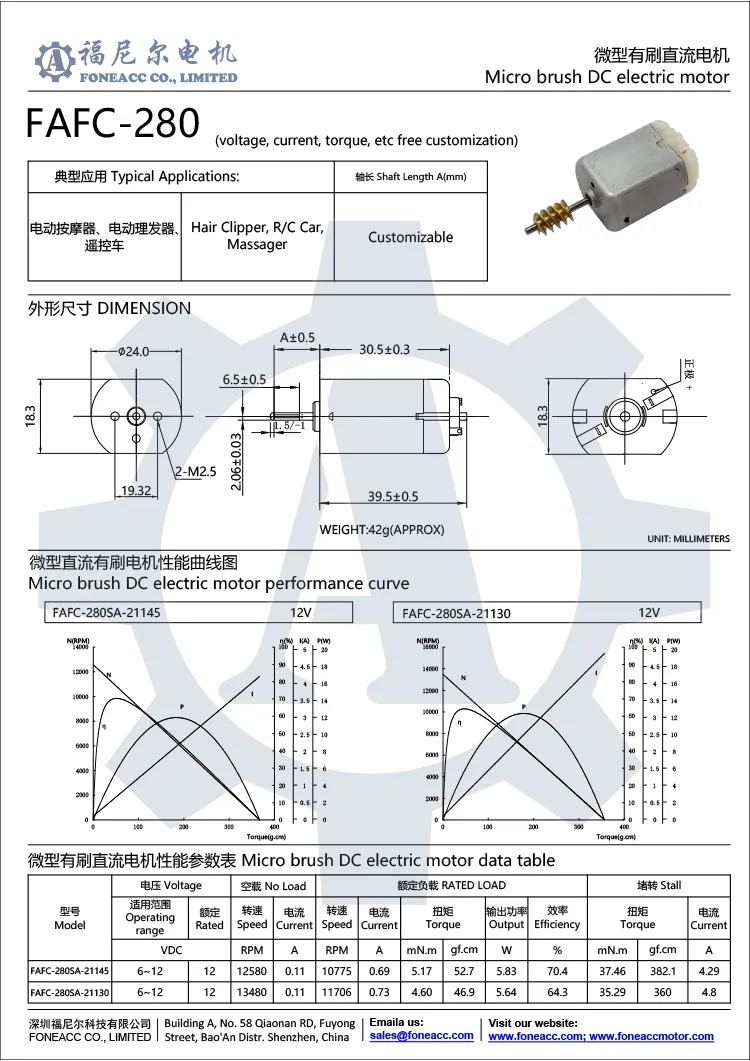

Dimensions and performance curves of FC-280 dc motor for reference:

fc-280 micro brush dc electric motor

Download FC-280 DC motor datasheet for clear view:

FC-280-datasheet.pdf

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
