RF-370 Brushed Micro DC motor

0) Model: RF-370CA
1) Output power: 0.3~1.5W;
2) Size: Φ24.4×30.8mm;
3) Voltage: DC 6V,12V;
4) No-load speed: 5400,6100 RPM;
5) No-load current: 0.028,0.06A;
6) Maximum efficiency torque: 25.77 G.CM;
7) Maximum efficiency power: 1.4W;
8).high quality;
9).Permanent Magnet brush motor;
10).ROHS

RF-370 Brushed micro dc motor

Main features:

RF-370 dc motor data examples:

Model	Voltage		No load		At maximum efficiency					Stall
	range	rated	speed	current	speed	current	torque	p	eff.	torque	current
	range	V	R/min	A	R/min	A	gf-cm	W	%	gf-cm	A
RF-370CA-12560	4.0-12.0	12	3,700	0.018	3,090	0.091	20.7	0.66	60.1	125	0.46
RF-370CA-15370	3.0-12.0	12	5,600	0.026	4,840	0.17	25.3	1.26	61.6	187	1.06
RF-370CA-12560	4.0-12.0	8	2,400	0.015	1,970	0.069	16	0.32	58.6	90	0.32
RF-370CB-81100	8.0-16.0	12	1,850	0.005	1,510	0.022	10.1	0.16	59.3	55	0.1
RF-370CH-22170	3.0-8.0	6	6,100	0.06	5,250	0.386	25.77	1.39	60.0	125	2.4
RF-370CH-17315	3.0-8.0	6	3,250	0.035	2,688	0.167	19.88	0.55	54.8	185	0.76
RF-370CH-15370	12.0-24.0	12	5,400	0.028	4,700	0.147	22.7	1.10	62.1	115	0.92
RF-370CH-11670	12.0-24.0	12	3,630	0.016	3,000	0.08	19.1	0.59	61.3	175	0.38

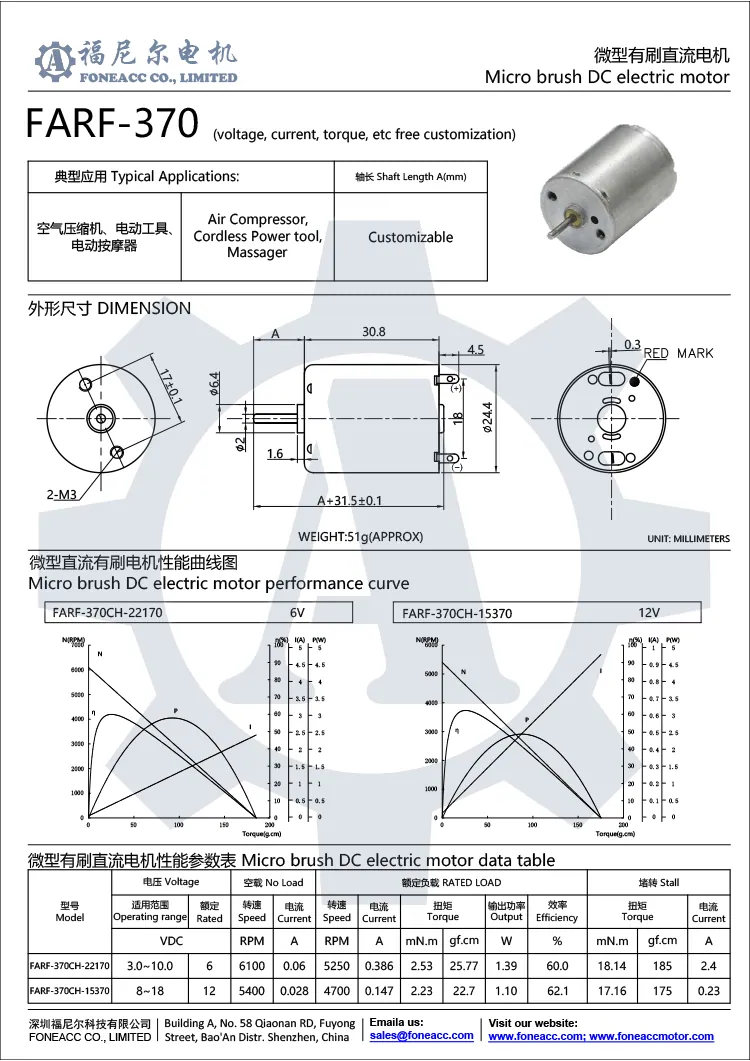

Dimensions and performance curves of RF-370 dc motor for reference:

rf-370 micro brush dc electric motor

Download RF-370 DC motor datasheet for clear view:

RF-370-datasheet.pdf

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
