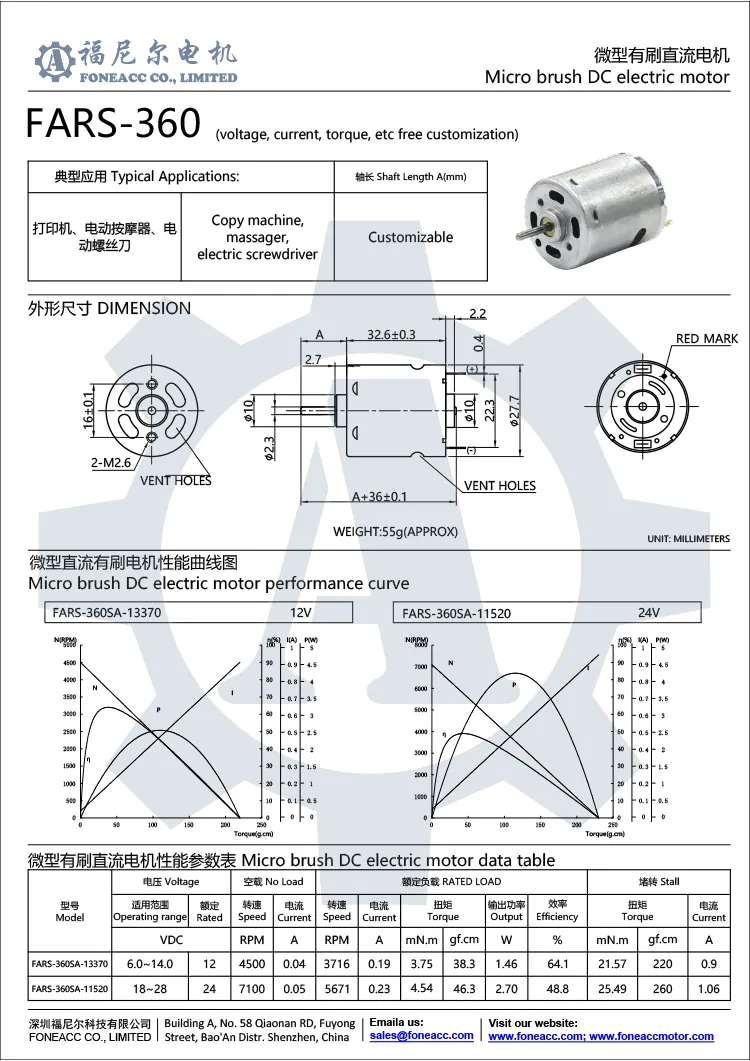

|- Model Number: RS-360
|- Shell Stator Size : Φ27.7* L 32.6 mm(Φ 1.09 inch * 1.286 inch)
|- Shaft : Φ2.3mm(0.09 inch), D shape, etc.
|- Shaft length free customization
|- Rated Output Power: up to 30W
|- Rated Voltage: DC 1.5V - 24V
|- Rated Torque: up to 100 gf·cm(9.8 mN·m)
|- Construction: Permanent Magnet
|- Commutation: Carbon brush
|- Manufacturer: Foneacc Motor
|- Clockwise/counter-clockwise rotation (CW&CCW)
|- Model Number: RS-360
|- Shell Stator Size : Φ27.7* L 32.6 mm(Φ 1.09 inch * 1.286 inch)
|- Shaft : Φ2.3mm(0.09 inch), D shape, etc.
|- Shaft length free customization
|- Rated Output Power: up to 30W
|- Rated Voltage: DC 1.5V - 24V
|- Rated Torque: up to 100 gf-cm(9.8 mN-m)
|- Construction: Permanent Magnet
|- Commutation: Carbon brush
|- Manufacturer: Foneacc Motor
|- Clockwise/counter-clockwise rotation (CW&CCW)
| Model | Voltage | No load | At maximum efficiency | Stall | |||||||||
| Range | Rated | Speed | Current | Speed | Current | Torque | P.out | Eff. | Torque | Current | |||
| V | R/min | A | R/min | A | mN-m | gf-cm | W | % | mN-m | gf-cm | A | ||
| RS-360SH-10500 | 12.0 - 25.0 | 24 | 7,000 | 0.05 | 5,600 | 0.2 | 4.50 | 45.9 | 2.64 | 55.0 | 22.45 | 229 | 0.8 |
| RS-360SH-2885 | 3.0 - 9.0 | 7.2 | 12,500 | 0.36 | 10,380 | 1.76 | 6.99 | 71.3 | 7.60 | 60.0 | 41.18 | 420 | 8.6 |
| RS-360SA-10500 | 12.0 - 25.0 | 12 | 3,500 | 0.05 | 2,590 | 0.14 | 2.75 | 28 | 0.74 | 44.3 | 10.59 | 108 | 0.41 |
| RS-360SH-4528 | 1.5 - 6.0 | 2.4 | 11,000 | 1.1 | 7,983 | 2.91 | 4.97 | 50.69 | 4.15 | 59.5 | 18.12 | 185 | 7.7 |
| RS-360SH-3548 | 2.4 - 9.0 | 9 | 25,000 | 0.8 | 20,621 | 3.77 | 8.40 | 85.63 | 18.13 | 53.4 | 47.93 | 489 | 17.74 |
| RS-360SA-3165 | 1.2 - 6.0 | 3.6 | 8,500 | 0.39 | 6,832 | 1.6 | 4.81 | 49.07 | 3.44 | 59.8 | 24.51 | 250 | 6.54 |
| RS-360SA-25110 | 3.0 - 15.0 | 6 | 8,400 | 0.22 | 6,927 | 1.035 | 5.29 | 54 | 3.84 | 61.8 | 30.20 | 308 | 4.87 |
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
Contact: Foneacc Motor Sales Team
Phone: +86-13923860676
E-mail: sales@foneacc.com
Add: Building A, No. 58 Qiaonan RD, Fuyong Street, Bao An District. Shenzhen, China
