RS-390 Carbon Brushed Micro DC Motor -- Foneacc Motor

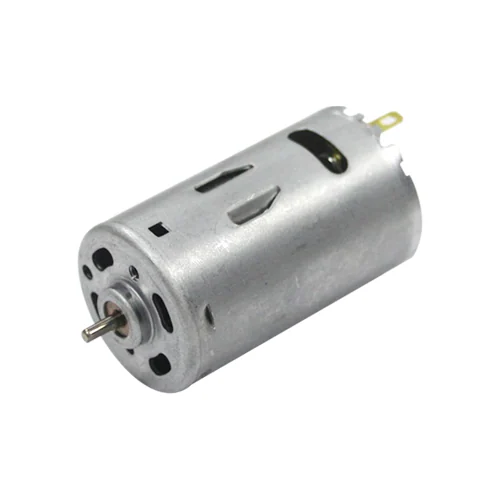

RS-390 mini DC motor

---

Key features:

|- Model Number: RS-390;
|- Motor type: brushed dc motor;
|- Voltage: 3V-36VDC;
|- Speed: 1500rpm-25000rpm;
|- Torque: 30g.cm-150g.cm;
|- Shaft OD: Φ2.3mm;
|- Rotation Direction: CW/ CCW;
|- Bearing: Bushing/Ball bearing
Typical application: pump, blender, smart home electronics, audio equipment

---

RS-390 DC motor data examples:

Model	Voltage		No load		At maximum efficiency					Stall
	Range	rated	speed	current	speed	current	torque	p.out	eff.	torque	current
		v	r/min	a	r/min	a	gf-cm	w	%	gf-cm	a
RS-390SH-20156	6.0-14.0	12	5000	0.08	4243	0.33	61.9	2.70	68.1	430	2.22
RS-390SH-2975	6.0-14.0	12	12000	0.29	10165	0.73	58.6	6.12	69.8	820	8.9

---

RS-390 DC motor dimension for reference:

---

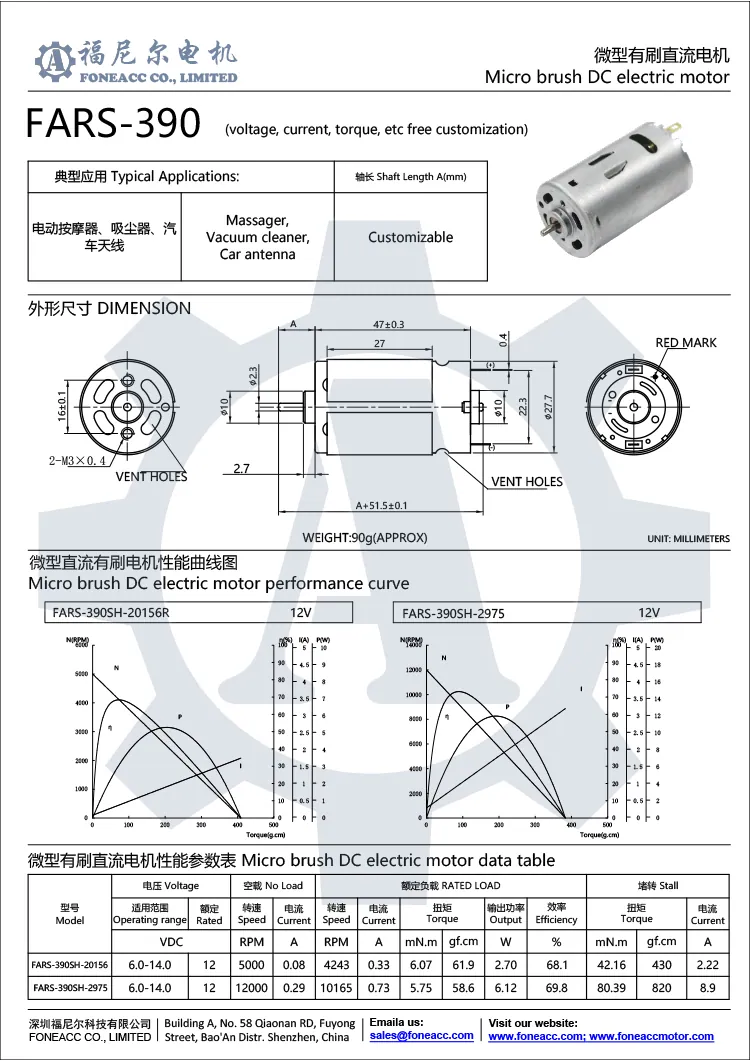

Download RS-390 DC motor datasheet for clear view:

Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
